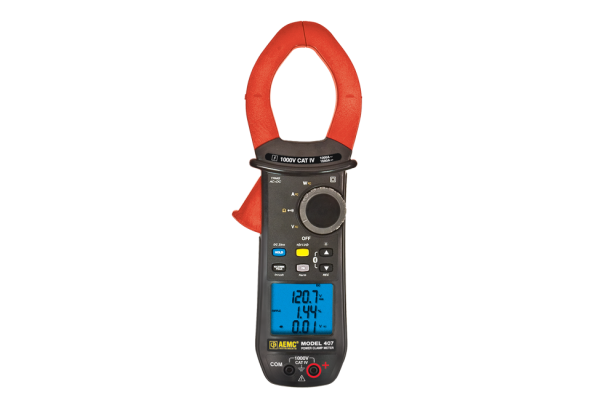

Alicate Wattímetro AEMC 407
Preço sob consulta
The TRMS Power Clamp-on Meter Model 407 provides a new standard for safety and measurement capability not available in any other clamp meter sold today. Safety Rated at 1000V CAT IV, it is safe to operate in all electrical environments.
It is rugged enough for the most demanding work environments and will withstand both dust and water spray with its IP54 rating. It is ergonomically designed and easily used by one hand, including function selection and button pushing even with a glove on. In addition to the standard measurement of volts, amps, frequency, resistance, diode checking and continuity, the Model 407 offers several unequaled functions including: AC, DC and AC+DC volts, amps and power, True InRush®, power measurements, harmonic analysis, data logging, and more.
FEATURES
- 1000V CAT IV Rated
- UL 94 VI flame retardant self-extinguishing
- 10,000-count blue electroluminescent backlit display
- Measures up to 1000VAC (1400V peak), 1000VDCand AC+DC with resolution to 10mV
- Measures W, VA, var and PF for single- and three-phase balanced systems
- Measures single- and three-phase power (real, reactive and apparent) up to 3MW with resolution to 1W
- Measures frequency to 20kHz with 0.1Hz resolution
- Auto selects AC or DC measurement
- True InRush® current measurement with 100mS capture
- Measures harmonics up to the 25th
- Records up to 1000 measurements
- Bluetooth communication (communicates up to 30ft)
- Includes FREE DataView® software for download and report generation
- Jaw opening up to 1.89" (48mm)
SPECIFICATIONS
MODEL: 407
Current AC (rms): 1000A
Current DC: 1500A
Current AC+DC: 1500A Peak
Voltage AC (rms): 1000V
Voltage DC: 1000V
Voltage AC+DC: 1000V
Ohms: 100kΩ
Continuity (Buzzer): Yes (< 40Ω)
Total Harmonic Distortion: Yes
Individual Harmonics (to 25th): Yes
Single- and 3-Phase Real Power (AC, DC, AC/DC)*: 1000kW
Single- and 3-Phase Reactive Power (AC, DC, AC/DC)*: 1000kvar
Single- and 3-Phase Apparent Power (AC, DC, AC/DC)*: 1000kVA
Voltage Frequency (Hz): 20kHz
Current Frequency (Hz): 2kHz
Power Function (W, var, VA): Yes
Power Factor: Yes
THD-r/THD-f: Yes
Auto AC/DC: Yes (V & A)
Auto Power OFF: Yes
Hold Button: Yes
Backlight Button: Yes
Min/Max Button: Yes
True InRush® Function: Yes
Peak ± Function: Yes
Harmonics Function: Yes
Rec (Record) Function: Yes
Wireless BT (Bluetooth) Function: Yes
Record (Recordings): 1000
Hz Button: Yes
*3-phase measurements assume balanced load
