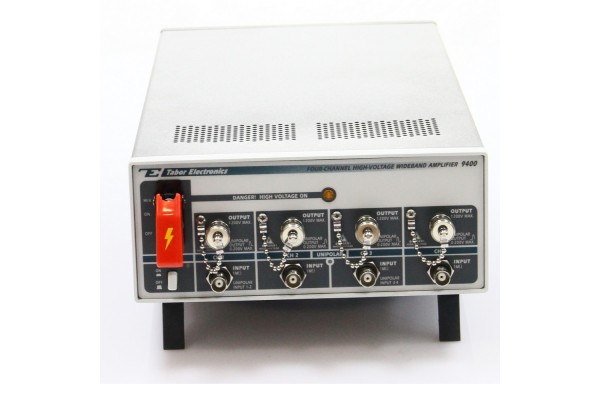

Amplificador de Sinal Tabor Série 9400

    Preço sob consulta

    Em estoque

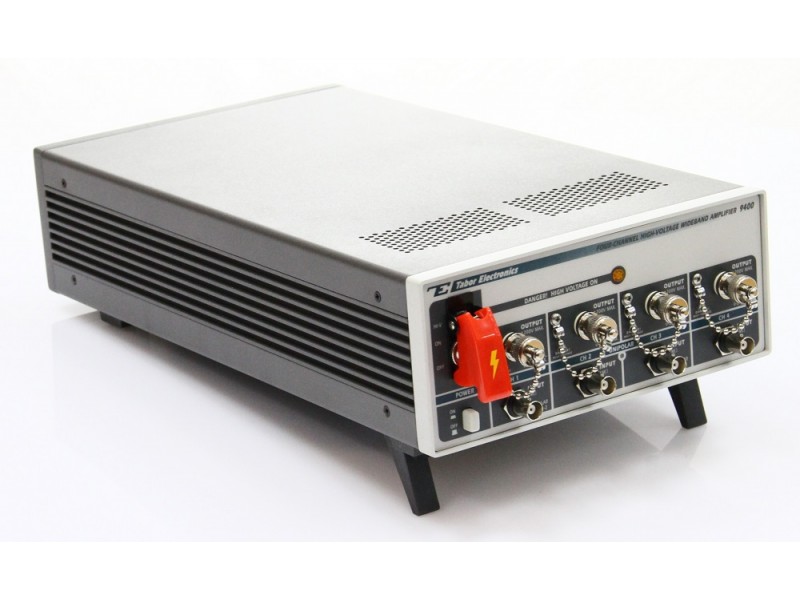

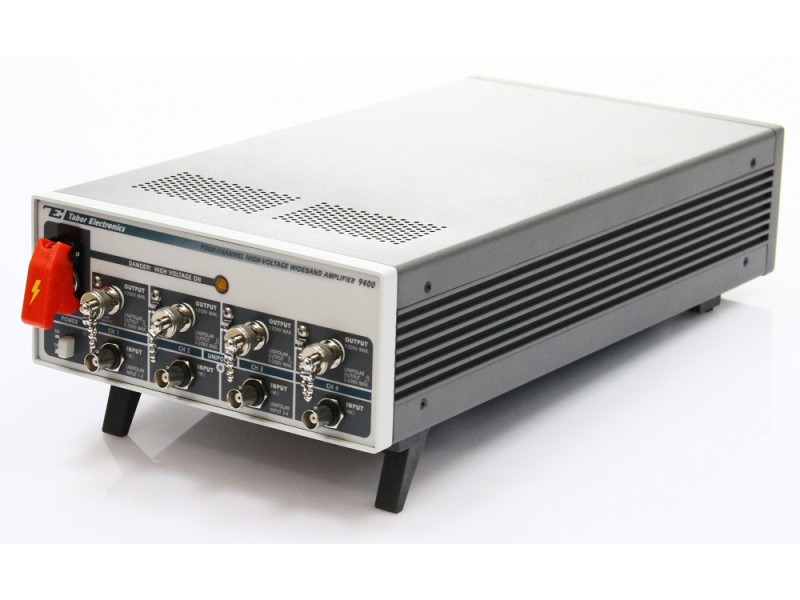

MODEL 9400 - 400Vp-p Four Channel Signal Amplifier


Model 9400 was designed as a general purpose, wide band and high voltage amplifier however, with specific applications in mind. It has four channels built in a small case size to save space and cost but without compromising bandwidth and signal integrity.


Features

- High voltage output to 400Vp-p (±200V)

- Output current to 50mA

- Full power bandwidth from DC to >500kHz

- Slew rate to 400V/µs

- Monitor Outputs for each channel

- Precise signal amplification for multiple applications

- Compatible with any of the Tabor waveform generators

- Special unipolar mode for MEMS engine drivers


Solves Common Problems

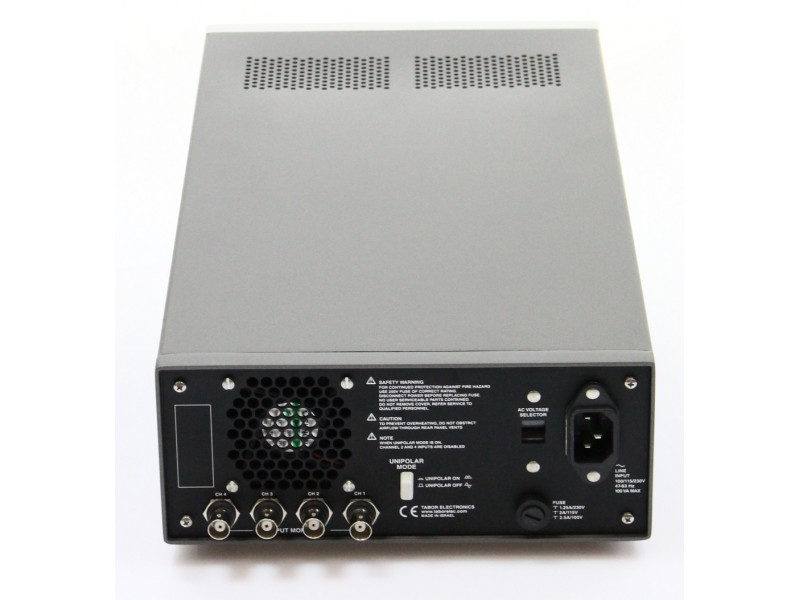

Model 9400 can output signals from -200V to +200V with continuous currents up to 50mA per channel. The output is driven from a 0.1W source and, with some degradation of its bandwidth, can drive capacitive loads up to 1nF, while maintaining its full amplitude range. Model 9400 has a rearpanel monitor output that divides the main output signal by 100 for applications that require monitoring of the output signal with low voltage sensors.


Modes of Operation

The 9400 has two modes of operation. The first is normal mode where each channel amplifies and outputs bipolar signals with a gain of x50. In this mode, the input signal is amplified and delivered to the output terminals without modification of its original properties, except its amplitude level. Using this mode of operation, each channel can be used separately to amplify a unique signal.

The second mode of operation is the unipolar mode where the signal is applied to one input, rectified, amplified and output through two separate outputs. Using this mode, the amplifier is converted to a one-input, twooutput system, specifically designed to operate the up/down and right/left actuators of a typical MEMS micro engine, as well as for other applications requiring the precise conversion of bipolar to unipolar signals.


Target Applications

The amplifier case was designed to stack on top or below other Tabor products. It can also be mounted alongside a Tabor generator in a standard 19" rack. The waveform-amplifier combo is an ideal solution for virtually any high-voltage, wide bandwidth application.


Safety

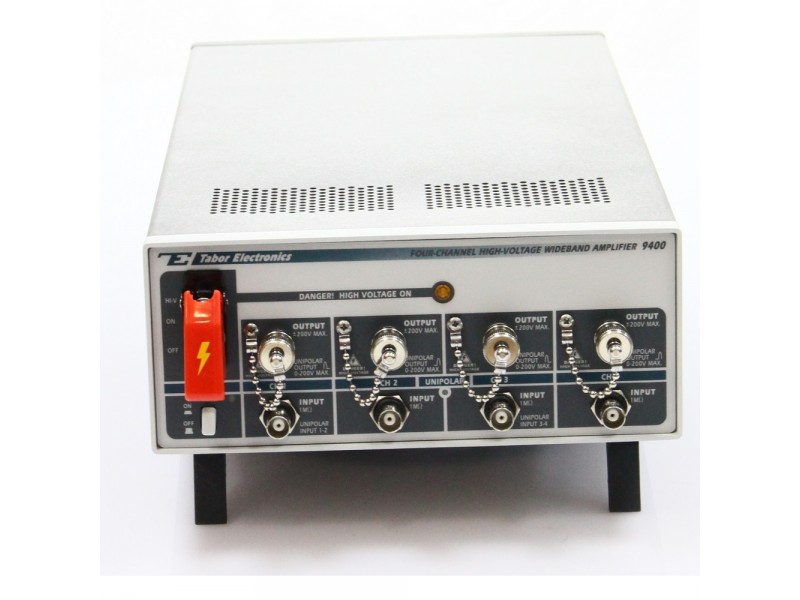

Safety played a major role during the design of the Model 9400. The high voltage path to the amplifier circuit is blocked by a front panel mechanical switch and accidental application of high power to the UUT is prevented by a safety latch. The 9400 will output high voltage signals only after the safety latch has been lifted and the high voltage switch flipped to ON position. In emergency situations, one can hit the protective latch to immediately remove the high voltage power from the output terminals. As an additional visual safety feature, a red light glows on the front panel whenever the high voltage is turned on.



Specification


CONFIGURATION

Channels:

Single-ended: 4 separate inputs and 4 single-ended outputs, bipolar voltage span

Unipolar: 2 separate input, each having two output channels with 180° phase offset, unipolar voltage outputs


INPUT CHARACTERISTICS

Connectors: Front panel BNCs

Impedance: 1MΩ

Coupling: DC

Amplitude Level: 8Vp-p (±4V peaks)

Frequency Range:

Full Power DC to 500 kHz

Unipolar Mode DC to 200kHz

Max. Output Current: 50mA per channel


OUTPUT CHARACTERISTICS

GENERAL

Connectors: Front panel BNCs

Source Impedance: 0.1Ω

Load impedance:

Resistive, recommended for full power bandwidth spec, load resistance limited by the output current ;

Capacitive, up to 100pF has minimal effect on bandwidth, 1nF reduces the full power bandwidth to 100kHz

Coupling: DC

Protection: Short-circuit, 10 seconds

Gain: x50, fixed

Polarity: Output normal; half wave rectified

Amplitude:

Full Power 400Vp-p (±200V)

Unipolar Mode 0 to +200V

SQUARE WAVE CHARACTERISTICS

Transition Time: <1µs

Aberrations: <10%

SINE WAVE CHARACTERISTICS

Bandwidth: -3dB

Small Signal 1.5MHz, at 20Vp-p

Large Signal 500kHz, at 400Vp-p

Accuracy: (2% of full-scale amplitude range + 50mV), Square wave at 1kHz

THD:

10 Hz to 50 kHz <0.1%

50 kHz to 200 kHz <0.8%


OUTPUT MONITOR CHARACTERISTICS

Connectors: Rear panel BNCs

Source Impedance: 3kΩ

Load impedance: 1MΩ

Ratio: 100:1, ±10%


GENERAL

Voltage Range: 100V/115V/230V

Frequency Range: 47Hz to 63Hz

Power Consumption: 120W

Signal Ground: Floated to the same level as the source, 250VDC max.

Dimensions:

With Feet 315 x 102 x 395 mm (WxHxD)

Without Feet 315 x 88 x 395 mm (WxHxD)

Weight:

Without Package 6.5kg

Shipping Weight 7.5kg

Temperature:

Operating 0°C to 50°C

Storage -40°C to 70°C

Humidity: 80% RH, non condensing

Safety: CE Marked, IEC61010-1

Calibration: 1 years

Warranty (1): 3 years standard


MODEL DESCRIPTION

9400-50(*) 400Vp-p Four Channel Signal Amplifier

(*) Custom gain available upon request, however, bandwidth may change
