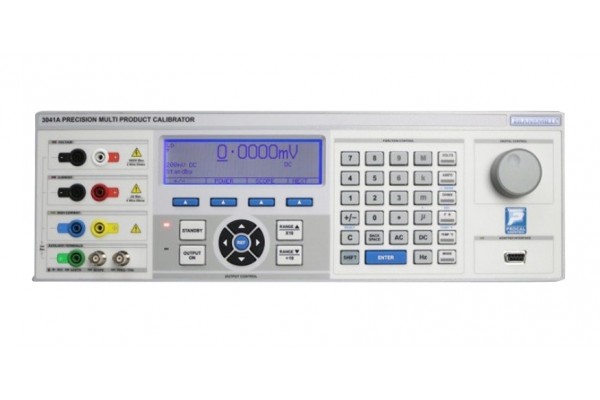

Calibrador Multiproduto de Precisão Transmille Série 33xxA
Preço sob consulta
The 33XXA Series multiproduct calibrators are modular versions of the class leading 3000A Series Calibrators. Designed to reduce cost, the 33XXA Series feature 0 - 20V DC output as standard with a wide range of options.
Features
- 0 - 20V DC Base Unit
- Highly configurable precision source
- Ideal for ATE Systems
- Ideal for Dual Source Resistance Bridge
- 20V - 1000V High Voltage Output
- 0mA - 200mA Low Current Output
- 200mA - 30A (3310A/3341A) High Current Output
- AC Output (includes all previously specified options)
- Resistance
- Capacitance
The configurability suits specialised applications where only limited functions are required, for example ATE systems or Dual Source resistance measurements systems as used by NMI's
Consisting of 3 models ranging from 8ppm to 50ppm, the 33XXA Series Multiproduct Calibrators provide a specialised and confugrable solution to requirements for precision sources.
| Model | 3350A | 3341A | 3310A |
| DC Voltage (Best 1 Year Total Accuracy) | 0 - ±20V (0 - ±1000V Option) ± 50 ppm | 0 - ±20V (0 - ±1000V Option) ± 25 ppm | 0 - ±20V (0 - ±1000V Option) ± 8 ppm |
| DC Current (Optional) (Best 1 Year Total Accuracy) | 0 - ±22A (± 100ppm) | 0 - ±30A (± 50ppm) | 0 - ±30A (± 50ppm) |
| AC Voltage (Optional) (Best 1 Year Total Accuracy) | 20mV - 1000V, 10Hz to 100kHz | 20mV - 1000V, 10Hz to 500kHz (0.04%) | 20mV - 1000V, 10Hz - 1MHz (0.015%) |
| AC Current (Optional) (Best 1 Year Total Accuracy) | 20uA - 22A, 10Hz to 10kHz (0.07%) | 20uA - 30A, 10Hz to 10kHz (0.06%) | 20uA - 30A, 10Hz to 10kHz (0.04%) |
| Resistance (Passive) (Optional) (Best 1 Year Total Accuracy) | 0 Ohms - 100 MOhms (60ppm) | 0 Ohms - 1 GOhms (40ppm) | 0 Ohms - 1GOhms (18ppm) |
| Capacitance (Passive) (Optional) (Best 1 Year Total Accuracy) | 10nF - 1uF (0.25%) | 1nF - 10uF (0.25%) | 1nF - 10uF (0.25%) |
