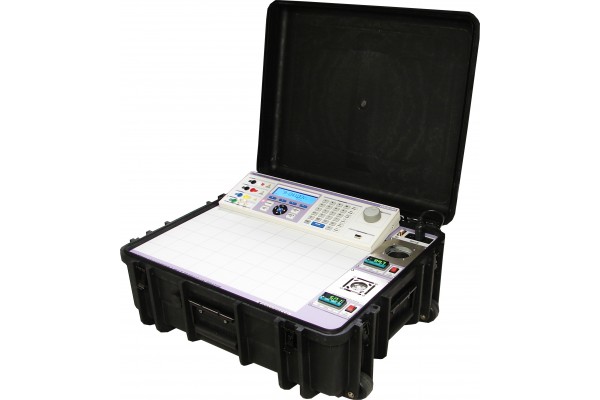

Calibrador Multiproduto Portátil Transmille Série 9000A

The 9000A series range of multiproduct calibrators offers the widest workload of any calibration system presently available. The 9000A series provides all of the functionality of the 3000A series multiproduct calibrator in a dedicated ruggedised case for the ultimate in on site calibration performance.

Using an innovative series of internal and external options, the 9000A provides workload coverage that no other manufacturer offers. With external options ranging from Thermocouple source and measurement through to a dedicated low current source, and internal options providing Oscilloscope calibration to 600MHz and calibration of power meters with power quality functionality.

The 9000A series is designed within industrial environments including offshore, aerospace and military applications. The rugged enclosure with integrated wheels and retractable handle lends itself to easy transportation to and from site. A fast warm-up time ensures calibration can be performed quickly and accurately.

- 0-1000V DC / AC Voltage
- 0-30A DC / AC Current
- 0-1 GOhm Resistance

- 1nF-10mF Capacitance
- 1Hz-10MHz Frequency
- Range of external accessories to increase workload


Wide Workload Coverage

The 9000A series offers the widest workload coverage of any multi-product calibrator, with the ability to calibrate 18 types of instrument. It has the power to drive older analogue instruments alongside the accuracy to calibrate modern digital instruments.


Cost-Effective Calibration

The 9000A series features three models designed to suit every budget and accuracy requirement, and with a wide range of options that allow your calibrator to be tailored to meet your needs, the 3000 series is expandable for future needs.


Rugged Portability

A dedicated transportable design that is ideal for industrial use. A fast warm-up time combined with the latest technology, all included in a rugged and portable design.

Mini-FAQ

Why do Transmille have a timeout on the high voltage output?

We believe that safety is a prime consideration of a laboratory, second only to performance of our products.

Imagine a situation where a laboratory technician has finished calibration for the day, and has disconnected the instrument under test, but left the voltage source on at a setting of 1000V AC.

Later that evening, a cleaner comes into your laboratory or facility and touches the test leads left on the bench, potentially receiving a very nasty shock. Transmille have added this safety feature to avoid situations of this type from happening.

There are, however, cases where the timeout wishes to be extended, or even disabled. This can be performed through the Calibrator Setup program via your computer, or can be disabled prior to shipping on request.


Why do Transmille offer a 30A output on calibrators?

The 30A output on Transmille multiproduct calibrators is included to ensure not only calibration of clamp meters up to 1500A, but also for calibration of low value high current shunts that would otherwise require a dedicated power supply which is an additional instrument that requires calibration.

The 30A function is limited by a thermal cut-out, that when the units internal temperature reaches a predetermined limit the output will be turned off.

The length of time that the 30A output is active for depends mainly upon the load that is connected, a higher resistance of load will mean that more power is dissipated within the load, reducing the self-heating of the high current section of the calibrator.

The worst-case scenario is that of a short across the output terminals, where all of the heat is being dissipated inside the heatsink of the calibrator. In the case of a coil that provides a considerable load (especially at AC, where the resistive and inductive effects of the coil take effect) the 30A can be present for much longer as the heat is being dissipated inside the coil.


Why do Transmille products feature USB or RS232 as standard interfaces rather than GPIB/IEEE 488?

Transmille products have been designed to most accurately represent the requirements of modern commercial laboratories and the typical equipment that is found inside.

Almost all modern computers are fitted with a USB interface, so to enable direct connection without the requirement for additional adapters a USB connection is provided.

IEEE 488/GPIB interfaces are typically quite expensive, and are another lead/connection to remember when performing on-site calibration work.

GPIB interface options are available on our multiproduct calibrators, and are included as standard on the 8000 series multimeters.


Why do Transmille have scope amplitude ranges up to 50V/Division?

Transmille oscilloscope calibration options have amplitude ranges up to 300V to offer calibration of a wider range of oscilloscopes than our competitors.

Examples of oscilloscopes that require verification at these ranges are the Tektronix THS700A series and the Hanascope 801.


Why is the Transmille thermocouple option external rather than internal?

Transmille's EA001/EA001A has been designed to minimise typical errors associated with calibration of thermocouple meters that are ignored by other designs.

By making the thermocouple option external, the low voltage output (in the order of 0mV to 100mV, with accuracies in the microvolt level required for accurate simulation) is away from any heat generating components in the calibrator therefore reducing any localised thermal EMF effects.

The inclusion of a Thermocouple plug removes the need to find compensation cables of the correct type, which is a considerable source of error. If the wrong type of compensation cable (for example, when simulating a K type thermocouple, a J type compensating cable) is used there will be a significant error introduced through use of the wrong cable.

Finally, a temperature measurement is conducted at the connection with the UUT, in the thermocouple plug itself. This is measuring the cold junction as close to the internal measurement of the UUT as possible, removing localised differences in temperature.

For further information on the design of our thermocouple option, please view our YouTube video:
