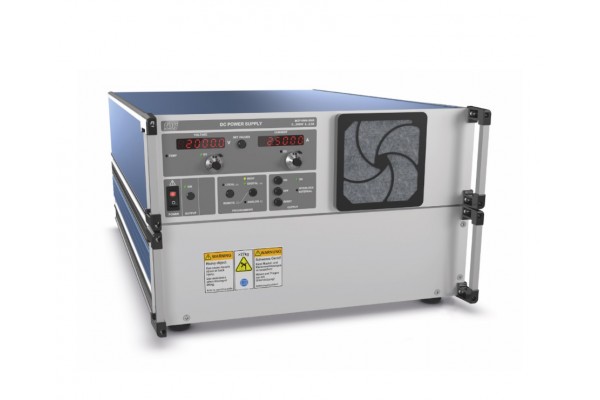

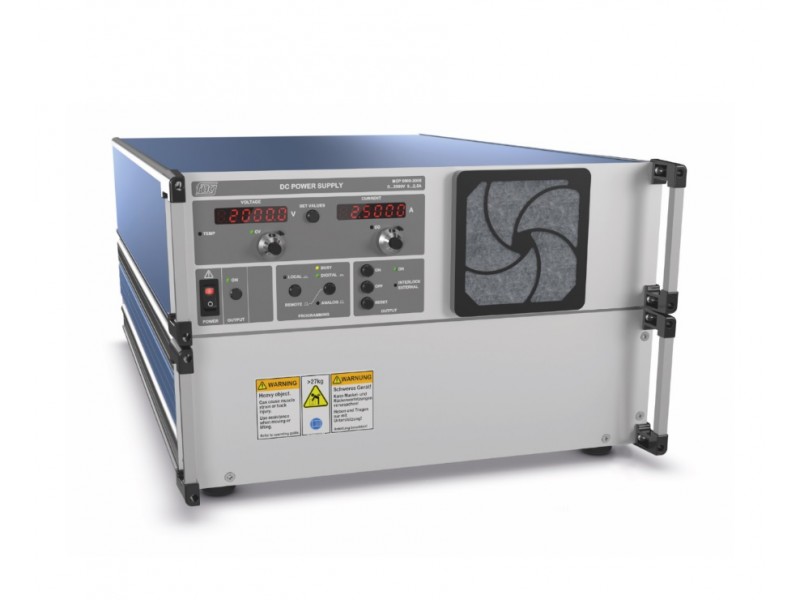

MEDIUM VOLTAGE POWER SUPPLIES - MCP Clocked circuit


Series MCP from 125V to 2kV / 14W to 15kW

In principle, the rectified line voltage drives a square wave generator of fixed frequency, whose AC voltage is transformed, rectified and filtered, producing the output voltage. For regulation, the square wave voltage is pulse width modulated. A low residual ripple of the output voltage, together with a high stability, high regulation speed and a low stored energy are all achieved by virtue of the high switching frequency.


FEATURES:

- Compact size and light weight

- Efficiency approx. 90%

- Short-circuit & flashover proof

- Unlimited operation with rated current in a short-circuit condition

- Unlimited operation with rated power

- Voltage and current regulation with automatic sharp transition, control modes indicated by LEDs

- Adjustable overvoltage protection (limitation of set value)

- 4½ digit DVM's for voltage and current for all models

- Voltage and current setting by means of 10-turn potentiometers with precision scale; the adjusting knob can be locked

- Indication of set point values by means of button for switchover of the displays

- Set point adjustment possible with locked output, release of output voltage by means of an "ON" / "OFF" switch

- Suitable for inductive and capacitive loads

- Suitable for photomultipliers


POWER

Power range up to 15.000W


VOLTAGE

Output voltage 125V up to 2000V, continuously adjustable from zero to maximum


APPLICATIONS

Ion sources

Plasma / Gas discharge applications

Sputtering

Photomultiplier

Nuclear research

Chemical / Biological research

Aerospace industry

Test benches for inverter rectifier and capacitors


SPECIAL FEATURES

Switch mode regulation

Low ripple

High stability

High regulation speed

Low stored energy

Floating output


DESIGN:

- ½19" or 19" table-top case (depending on output voltage and power).

- 19" Rack-adapters for mounting into a 19" rack are available as accessory.


OUTPUT:

- Output isolation: The output is floating. Either the positive or the negative terminal may be connected to earth. Units with nominal voltage up to 350V are isolated for ±500V. Units with nominal voltage from 650V up to 2000V are isolated for ±2000V. (Not valid with the option analog programming. If the floating function should remain, the floating analog programming must be chosen).

- Output terminals: All output terminals are located at the rear side of the unit. Units up to 350V nominal voltage are equipped with 4mm safety connectors. For nominal voltage of 650V and higher, high voltage connectors with the appropriate dielectric strength are delivered with the power supply.


TECHNICAL DATA:

- Mains connection:

>> Up to 1400W nominal power: 230V ±10% 47Hz to 63Hz

>> For 2800W and higher: 400V ±10% 47Hz to 63Hz, three-phase

- Ambient temperature:  0°C to +40°C


The following data applies for voltage and current regulation, and refers to the rated value (unless otherwise stated):

- Setting range: from approx. 0,1% to 100%

- Setting resolution: ±1 x 10-4

- Residual ripple (0-10MHz):

>> Up to 350W nominal power: <5 x 10-5 pp + 50mVpp

>> For 700W and higher: <2 x 10-4 pp + 200mVpp

- Recovery time:

>> Voltage control: <1ms for load changes from 10% to 100% or from 100% to 10%

>> Current control: <10ms for load changes causing an output change of less than 10% of the rated voltage

- Setting time at nominal load: <300ms for changes of the output voltage from 10% to 90% or 90% to 10%

- Discharge time constant for output without load: approx. 2sec. to 10sec., depending on type

- Deviation:

>> For ±10% mains voltage variation: <± 1 x 10-5

>> For no load / full load: <1 x 10-4

>> Over 8 hours under constant conditions: <±1 x 10-4

>> Within the temperature range: <±1 x 10-4 /K


POSSIBLE OPTIONS:

- Coarse/fine-potentiometers (99% / 1%) for more accurate adjustment of voltage and / or current

- Analog programming (One of the outputs on “0V” - potential)

- Analog programming, floating

- DVM with better resolution

- Computer interfaces - IEEE 488, RS 232, RS 422, Profibus DP, USB, LAN (more on request)

- Lower ripple

- Higher stability

- Lower stored energy

- Power limitation


TYPE OVERVIEW

TYPEVOLTAGECURRENTWIDTHHEIGHTDEPTHWEIGHT
MCP 35 - 125• 0 - 125 V0 - 250 mA½19" / 222 mm3 U / 133 mm350 mm4 kg
MCP 140 - 125• 0 - 125 V0 - 1 A½19" / 222 mm3 U / 133 mm350 mm5 kg
MCP 350 - 125• 0 - 125 V0 - 2,5 A½19" / 222 mm3 U / 133 mm350 mm6 kg
MCP 700 - 125• 0 - 125 V0 - 5 A19" / 443 mm3 U / 133 mm350 mm9 kg
MCP 1400 - 125• 0 - 125 V0 - 10 A19" / 443 mm3 U / 133 mm450 mm12 kg
MCP 2800 - 1253) 0 - 125 V0 - 20 A19" / 443 mm3 U / 133 mm550 mm23 kg
MCP 5000 - 1253) 0 - 125 V0 - 40 A19" / 443 mm6 U / 266 mm650 mm40 kg
MCP 10000 - 1253) 0 - 125 V0 - 80 A19" / 443 mm9 U / 399 mm650 mm75 kg
MCP 15000 - 1253) 0 - 125 V0 - 120 A19" / 443 mm12 U / 535 mm650 mm110 kg
MCP 35 - 200• 0 - 200 V0 - 150 mA½19" / 222 mm3 U / 133 mm350 mm4 kg
MCP 140 - 200• 0 - 200 V0 - 600 mA½19" / 222 mm3 U / 133 mm350 mm5 kg
MCP 350 - 200• 0 - 200 V0 - 1,5 A½19" / 222 mm3 U / 133 mm350 mm6 kg
MCP 700 - 200• 0 - 200 V0 - 3 A19" / 443 mm3 U / 133 mm350 mm9 kg
MCP 1400 - 200• 0 - 200 V0 - 6 A19" / 443 mm3 U / 133 mm450 mm12 kg
MCP 2800 - 2003) 0 - 200 V0 - 12 A19" / 443 mm3 U / 133 mm550 mm23 kg
MCP 5000 - 2003) 0 - 200 V0 - 25 A19" / 443 mm6 U / 266 mm650 mm40 kg
MCP 10000 - 2003) 0 - 200 V0 - 50 A19" / 443 mm9 U / 399 mm650 mm75 kg
MCP 15000 - 2003) 0 - 200 V0 - 75 A19" / 443 mm12 U / 535 mm650 mm110 kg
MCP 35 - 350• 0 - 350 V0 - 100 mA½19" / 222 mm3 U / 133 mm350 mm4 kg
MCP 140 - 350• 0 - 350 V0 - 400 mA½19" / 222 mm3 U / 133 mm350 mm5 kg
MCP 350 - 350• 0 - 350 V0 - 1 A½19" / 222 mm3 U / 133 mm350 mm6 kg
MCP 700 - 350• 0 - 350 V0 - 2 A19" / 443 mm3 U / 133 mm350 mm9 kg
MCP 1400 - 350• 0 - 350 V0 - 4 A19" / 443 mm3 U / 133 mm450 mm12 kg
MCP 2800 - 3503) 0 - 350 V0 - 8 A19" / 443 mm3 U / 133 mm550 mm23 kg
MCP 5000 - 3503) 0 - 350 V0 - 14 A19" / 443 mm6 U / 266 mm650 mm40 kg
MCP 10000 - 3503) 0 - 350 V0 - 28 A19" / 443 mm9 U / 399 mm650 mm75 kg
MCP 15000 - 3503) 0 - 350 V0 - 42 A19" / 443 mm12 U / 535 mm650 mm110 kg
MCP 14 - 650• 0 - 650 V0 - 20 mA½19" / 222 mm3 U / 133 mm350 mm4 kg
MCP 35 - 650• 0 - 650 V0 - 50 mA½19" / 222 mm3 U / 133 mm350 mm4 kg
MCP 140 - 650• 0 - 650 V0 - 200 mA½19" / 222 mm3 U / 133 mm350 mm5 kg
MCP 350 - 650• 0 - 650 V0 - 500 mA½19" / 222 mm3 U / 133 mm350 mm6 kg
MCP 700 - 650• 0 - 650 V0 - 1 A19" / 443 mm3 U / 133 mm350 mm9 kg
MCP 1400 - 650• 0 - 650 V0 - 2 A19" / 443 mm3 U / 133 mm450 mm12 kg
MCP 2800 - 6503) 0 - 650 V0 - 4 A19" / 443 mm3 U / 133 mm550 mm23 kg
MCP 5000 - 6503) 0 - 650 V0 - 7 A19" / 443 mm6 U / 266 mm650 mm40 kg
MCP 10000 - 6503) 0 - 650 V0 - 15 A19" / 443 mm9 U / 399 mm650 mm75 kg
MCP 15000 - 6503) 0 - 650 V0 - 22,5 A19" / 443 mm12 U / 535 mm650 mm110 kg
MCP 14 - 1250• 0 - 1250 V0 - 10 mA½19" / 222 mm3 U / 133 mm350 mm4 kg
MCP 35 - 1250• 0 - 1250 V0 - 25 mA½19" / 222 mm3 U / 133 mm350 mm4 kg
MCP 140 - 1250• 0 - 1250 V0 - 100 mA½19" / 222 mm3 U / 133 mm350 mm5 kg
MCP 350 - 1250• 0 - 1250 V0 - 250 mA½19" / 222 mm3 U / 133 mm350 mm6 kg
MCP 700 - 1250• 0 - 1250 V0 - 500 mA19" / 443 mm3 U / 133 mm350 mm9 kg
MCP 1400 - 1250• 0 - 1250 V0 - 1 A19" / 443 mm3 U / 133 mm450 mm12 kg
MCP 2800 - 12503) 0 - 1250 V0 - 2 A19" / 443 mm3 U / 133 mm550 mm23 kg
MCP 5000 - 12503) 0 - 1250 V0 - 4 A19" / 443 mm6 U / 266 mm650 mm40 kg
MCP 10000 - 12503) 0 - 1250 V0 - 8 A19" / 443 mm9 U / 399 mm650 mm75 kg
MCP 15000 - 12503) 0 - 1250 V0 - 12 A19" / 443 mm12 U / 535 mm650 mm110 kg
MCP 14 - 1250• 0 - 1250 V0 - 10 mA½19" / 222 mm3 U / 133 mm350 mm4 kg
MCP 35 - 1250• 0 - 1250 V0 - 25 mA½19" / 222 mm3 U / 133 mm350 mm4 kg
MCP 140 - 1250• 0 - 1250 V0 - 100 mA½19" / 222 mm3 U / 133 mm350 mm5 kg
MCP 350 - 1250• 0 - 1250 V0 - 250 mA½19" / 222 mm3 U / 133 mm350 mm6 kg
MCP 700 - 1250• 0 - 1250 V0 - 500 mA19" / 443 mm3 U / 133 mm350 mm9 kg
MCP 1400 - 1250• 0 - 1250 V0 - 1 A19" / 443 mm3 U / 133 mm450 mm12 kg
MCP 2800 - 12503) 0 - 1250 V0 - 2 A19" / 443 mm3 U / 133 mm550 mm23 kg
MCP 5000 - 12503) 0 - 1250 V0 - 4 A19" / 443 mm6 U / 266 mm650 mm40 kg
MCP 10000 - 12503) 0 - 1250 V0 - 8 A19" / 443 mm9 U / 399 mm650 mm75 kg
MCP 15000 - 12503) 0 - 1250 V0 - 12 A19" / 443 mm12 U / 535 mm650 mm110 kg
MCP 14 - 2000• 0 - 2000 V0 - 6 mA½19" / 222 mm3 U / 133 mm350 mm4 kg
MCP 35 - 2000• 0 - 2000 V0 - 15 mA½19" / 222 mm3 U / 133 mm350 mm4 kg
MCP 140 - 2000• 0 - 2000 V0 - 60 mA½19" / 222 mm3 U / 133 mm350 mm5 kg
MCP 350 - 2000• 0 - 2000 V0 - 150 mA½19" / 222 mm3 U / 133 mm350 mm6 kg
MCP 700 - 2000• 0 - 2000 V0 - 300 mA19" / 443 mm3 U / 133 mm350 mm9 kg
MCP 1400 - 2000• 0 - 2000 V0 - 600 mA19" / 443 mm3 U / 133 mm450 mm12 kg
MCP 2800 - 20003) 0 - 2000 V0 - 1 A19" / 443 mm3 U / 133 mm550 mm23 kg
MCP 5000 - 20003) 0 - 2000 V0 - 2,5 A19" / 443 mm6 U / 266 mm650 mm40 kg
MCP 10000 - 20003) 0 - 2000 V0 - 5 A19" / 443 mm9 U / 399 mm650 mm75 kg
MCP 15000 - 20003) 0 - 2000 V0 - 7 A19" / 443 mm12 U / 535 mm650 mm110 kg


3) connection three-phase

For 650V and higher units, the mating high voltage connectors are included in the scope of delivery.
