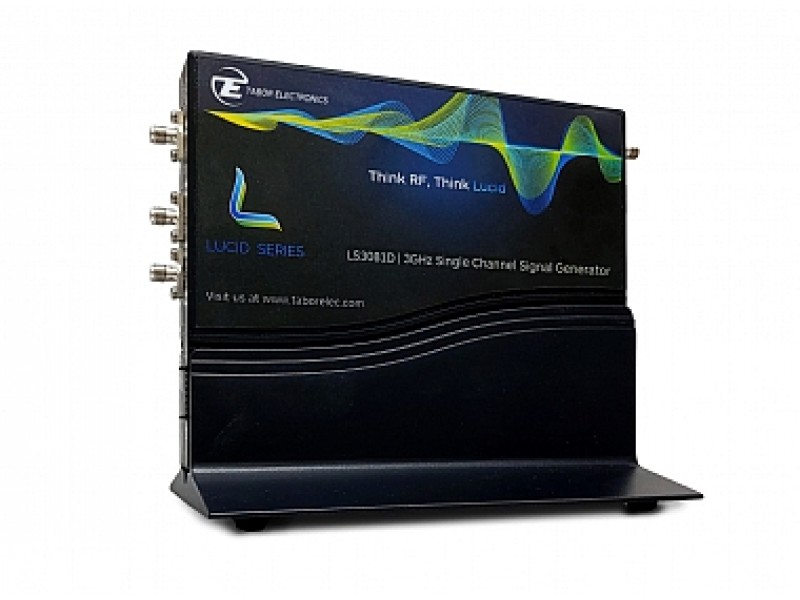

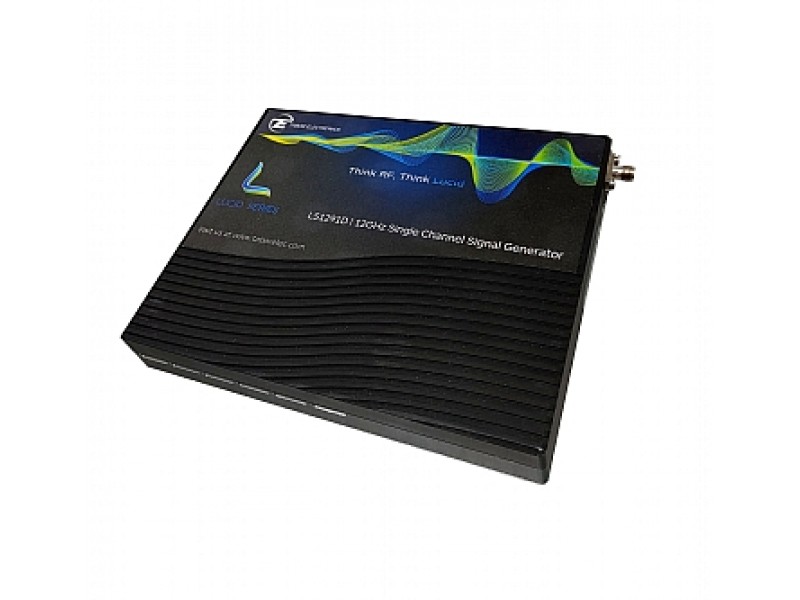

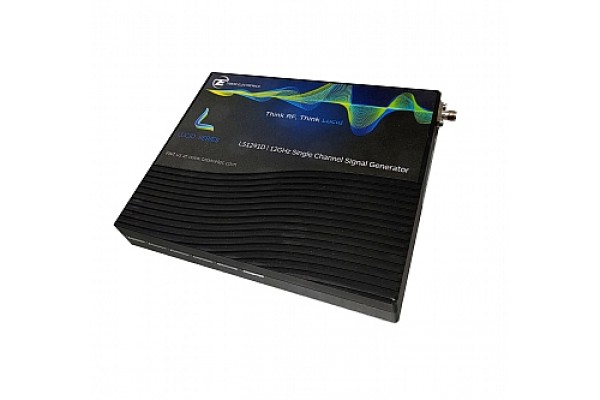

Gerador de Sinais RF Compacto Tabor Série Lucid

    Preço sob consulta

    Em estoque


Tabor is proud to introduce its new line of RF analog signal generators. The all-new Lucid Series offers the most advanced features and industry leading performance in the most compact form factor.


The series feature 3, 6 and 12 GHz single channel versions, all sharing the very same industry leading highlighted features, in a compact, small footprint module. Featuring fast switching speed, superior signal integrity and purity, all the necessary modulated signals for analog communication systems, with built in SPI and micro-USB interface, the Lucid Series is designed to meet today’s most demanding specifications, needed from the R&D benches to the production lines.

The Desktop platform offers all the functionality of a fully featured full-size RF analog signal generator in the smallest footprint module available on the market. Its small size enables using it as a desktop unit or easily scaling up to hundreds of channels, while keeping the required space to a minimum, let it be 3, 6, and 12 GHz, excellent signal quality and integrity and fast switching speeds.


Features

3,6 and 12GHz RF Analog signal Generators

Extremely fast swithching speed of <100us

Multi instrument synchronization capability

Remotely programmable via MATLAB, Python, LabView and other software programming environments

SPI and micro-USB integrated interfaces

Exceptionally low phase noise of -145dBc/Hz @100MHz and 10kHz offset

Extra small, compact module platform

AM, FM, PM Sweep & Pulse Modulation

Flexible modular platform for OEM and custom requirements and applications, to satisfy specific customer demands


Extremely Fast Switching

In today’s world, time is a crucial factor, whether in design, on the production floor or inside ATE systems. With a switching speed of less than 100μs, Tabor’s All-New Lucid Series ensures maximum measurements at minimum time, setting the industry’s highest throughput standard.


Signal Integrity and Purity

One of the most important requirement in today’s test and measurement applications is high signal quality. With a typical SSB phase noise of -145dBc/Hz at 100MHz, and -132dBc/Hz at 1GHz, at 10 kHz carrier offset, Tabor’s All-New Lucid Series platform delivers one of the best quality signals available on the market today, answering the ever growing demand for clear and precise signals.


Modulation Schemes

Signal bursts and chirps have become common need in the daily life of any aerospace or defense application. With Tabor’s All-New Lucid Series, any pulse modulation is possible, no matter if its “narrow” or “standard” pulse need. On top of its outstanding pulse modulation performance, the Lucid Series is also equipped with many CW interferers, and modulated signals such as AM, FM, PM and Sweep.


Multiple Ways to Control the Unit and Write your Code

Tabor’s Lucid Series comes with its own dedicated software to control the instrument functions, modes and features via a graphical user interface (GUI) as well as a complete set of drivers, allowing you to write your application in various environments including LabVIEW, Python, CVI, C++, VB and MATLAB. You may also link the supplied dll to other Windows-based API’s or use low-level SCPI commands to program the instrument, regardless of whether your application is written for Windows, Linux or Macintosh operating systems.


Model Overview

- The LS3081D was designed to offer excellent performance and abilities combined with an affordable price tag, needed from the R&D benches to the production lines.

- The LS6081D was designed to offer industry leading price to performance ratio, needed from the R&D benches to the production lines.

- The LS1291D is designed to meet today’s most demanding specifications, needed from the R&D benches to the production lines.


TECHNICAL SPECIFICATIONS


FREQUENCY

Range:

LS3081D: 9 kHz to 3GHz

LS6081D: 9 kHz to 6GHz

LS1291D: 9 kHz to 12GHz

Resolution: 0.001 Hz

Phase offset: 0.01 deg

Switching speed:

Standard: 500 µs

FS Option: 100 µs


FREQUENCY REFERENCE

Temp. Stability: ±25 ppb max.

Aging: ± 3 ppm for 20 years

Warm up time: 30 min


AMPLITUDE

Max output power:

Settable: +20 dBm

Calibrated: +15 dBm (1)

Min output power:

Settable: -30 dBm (Base); -100 dBm (LP, Opt.)

Calibrated: -20 dBm (Base); -80 dBm (LP, Opt.)

Resolution: 0.01 dB

Power Mute: -95 dBm

Output Return Loss: -10 dBm

Accuracy (dB):

Up to 100MHz: ±0.3 (typ.) (-50dBm to +15dBm); ±0.5 (typ.) (-90dBm to -50dBm)

100MHz to 3GHz: ±0.4 (typ.) (-50dBm to +15dBm); ±0.6 (typ.) (-90dBm to -50dBm)

3GHz to 9GHz: ±0.7 (typ.) (-50dBm to +15dBm); ±0.9 (typ.) (-90dBm to -50dBm)

Above 9GHz: ±1 (typ.) (-50dBm to +15dBm); ±1.5 (typ.) (-90dBm to -50dBm)


PHASE NOISE (dBc/Hz)

Measured @ 10kHz offset

1 GHz: -138 (typ.)

2 GHz: -133 (typ.)

3 GHz: -130 (typ.)

6 GHz: -124 (typ.)

12 GHz: -118 (typ.)


HARMONICS (dBc)

Up to 100 MHz: -30 dBc

100 MHz to 12 GHz: -50 dBc (2)


SUB-HARMONICS (dBc)

6 to 12 GHz: -55 dBm


NON-HARMONICS (dBc)

Up to 12 GHz: -90dBc (typ.) (4,5), -60dBc max.(6)


FREQUENCY MODULATION

Maximum Deviation: 10 MHz

Resolution: 0.1% or 1 Hz (the greater)

Modulation Rate: 1 MHz

Resolution: 1 Hz


AMPLITUDE MODULATION

AM Depth:

Type: Linear

Maximum settable: 90%

Resolution: 0.1% of depth

Accuracy (1 kHz) < ± 4% of setting

Modulation rate: DC to 100 kHz


PHASE MODULATION

Peak Deviation: 360 deg

Modulation Rate: DC to 100 kHz


PULSE MODULATION (PLS OPTION)

On/off ratio: 80 dB

Rise/fall time: (10%-90%): 15ns (typ.)

Resolution: 6.4ns

Minimum Width: 32ns

Repetition frequency: DC to 10 MHz


PATTERN MODULATION (PAT OPTION)

Number of steps: 1 to 2048

Step Repetition: 1 to 65535

On/off time: 32 ns to 20 days


SWEEP

Range: Same as freq. range

Modes: Frequency step,

Amplitude step, List

Dwell time: 10 µs to 1000 s

Resolution: 1 µs

Number of points:

List: 2 to 4,096

Step: 2 to 65,535

Step change: Linear

Trigger: Free run, External, Bus, Timer


MODULATION INPUT

Connector Type: MMCX

Input Impedance: 50Ω

Max. input voltage: ±1V

Input damage level: ±3.5V


PULSE / TRIGGER INPUT

Connector type: MMCX

Input Impedance: 50Ω

Input voltage: TTL, CMOS compatible

Threshold: 1.5V

Damage level: -0.42V or 5.42V


EXTERNAL REFERENCE INPUT

Connector type: SMA

Input Impedance: 50Ω

Waveform: Sine or Square

Frequency: 10/100MHz

Power: -3 dBm to +10 dBm

Absolute Max. Level: +15 dBm

Locking Range: ±2 ppm


RF OUT

Impedance: 50Ω

Connector type: SMA

Number of outputs: 1


REFERENCE OUT

Impedance: 50Ω

Connectors type: 2 x SMA

Frequency: 10 MHz or 100 MHz

Shape: Sine

Power: 3 to 7 dBm


Notes

(1) Above 25kHz;

(2) With LP Option;

(3) 750MHz to 900MHz -35dBc (typ.);

(4) -60dBm max. @ 1GHz, 1.5GHz, 2.5GHz and 3GHz;

(5) -75dBm max. @ -15dBm to +15dBm and f>6GHz;

(6) Boundary spurs which may apear @ -100MHz to +100MHz offset from CW


GENERAL SPECIFICATIONS

Voltage: +12.0 to +12.6 VDC

Power Consumption:

Normal Operation: 18W nom.

Max: 24W max.

Interface: MICRO-USB, SPI

Dimensions: 12 x 16 x 2.5 cm

Weight:

Without Package: 1.0 kg

Shipping Weight: 1.5 kg

Temperature:

Operating: 0°C to +40°C

Storage: -40°C to +70°C

Warm up time: 15 minutes

Humidity: 85% RH, non-condensing

Safety: CE Marked, IEC61010-1:2010

EMC: IEC 61326-1:2013

Calibration: 2 years

Warranty: 1 / 3 year warranty plan


MODEL DESCRIPTION

LS3081D: 3GHz RF Analog Signal Generator Desktop Module

LS6081D: 6GHz RF Analog Signal Generator Desktop Module

LS1291D: 12GHz RF Analog Signal Generator Desktop Module


OPTIONS

Option Pulse: Pulse Modulation

Option LP: Low Power option to -90 dBm

Option FS: Fast Switching option 100us

Emulator Pack: Includes emulators for Keysight, R&S, Anapico & Holzworth

Note: Options and Accessories must be specified at the time of your purchase.
