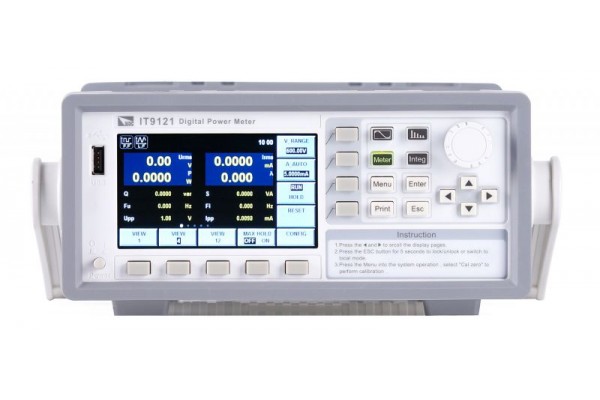

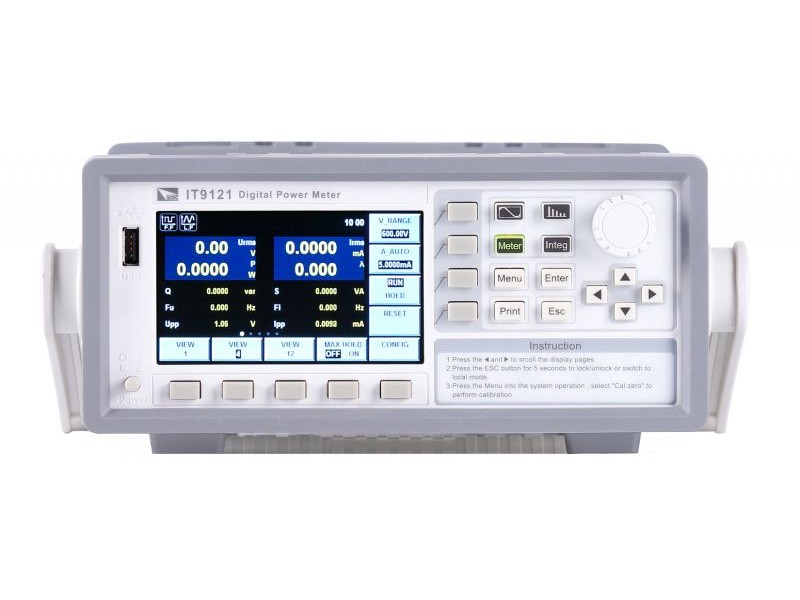

Medidor de Potência AC Itech IT9121

    Preço sob consulta

    Em estoque

The IT9121 power meter can provide the maximum input of 600 Vrms and 20 Arms and measurement bandwidth of 100 KHZ, and can be easily used for measuring the voltage, current, power, frequency, harmonics and other parameters.

The only difference between IT9121 and IT9121E is harmonic measurement function. IT9121E doesn't have harmonic measurement function. The standard configuration includes USB, GPIB, RS232 and LAN communication interfaces and also interfaces for USB-based peripheral devices. Users can save the measured parameters into the external storage medium. The basic voltage and current accuracy is 0.1%. Moreover, the power meter has rich integrating functions, such as the active power. It is widely applied in test of motors, household appliances, UPS, etc.

- 4.3-inch color LCD (TFT)
- The row number of matrix displayed on the screen can be set freely and common measurement parameters can be displayed
- Input range: 600 Vrms / 20 Arms
- The voltage, current, power, harmonics and other parameters can be measured at the same time
- The accuracy of voltage and current measurement is up to 0.1%
- The power meter has a function of harmonic measurement, and can be used for measuring up to 50th harmonics
- The interfaces for USB-based peripheral devices are provided, and the user can save data into the external storage medium
- The power meter has rich and powerful integrating functions, and can be used for measuring electric energy which is bought or sold
- The power meter also has a function of frequency measurement
- Standard built-in USB, GPIB, RS232 and Ethernet  communication interfaces

With precision measurement and multi-function, IT9121 and IT9121E are ideal for measuring and inspecting all types of electronic devices with switching power supplies. It can be used in both R&D, production test and other applications.
- Uninterruptible Power Supply (UPS) test
- Power supply test
- Appliances standby power consumption test
- Energy Star test
- Motor test
- Test system

General Specification
Model: IT9121
AC input voltage (Power Supply): 100 VAC — 240 VAC 50 / 60 Hz
Warm-up time: Approx 30 minutes
Operating environment: Temperature: 5°C— 40°C; Humidity: 20% RH — 80% RH (No condensation); Altitude: 2000 m or less 2000 m
Storage environment Temperature : -20°C— 50°C; Humidity : 20% RH—80% RH(No condensation); Altitude: 2000 m or less 2000 m
Installation: Indoors
Safety: IEC 61010-1, EN 61010-1, Measurement CAT II
Maximum power consumption: 50 VA
Display Type: Dimension: 4.3-inch color LCD  (TFT); Full screen pixel: 480 (horizontal) * 272 (vertical) points; Waveform display pixel: 384(horizontal) * 194 (vertical) points; Operating temperature: -20°C ~ 70°C; Storage temperature: -30°C ~ 80°C; Value display: matrix display

Included Accessories: AC Power Cord, CD, USB Cable
