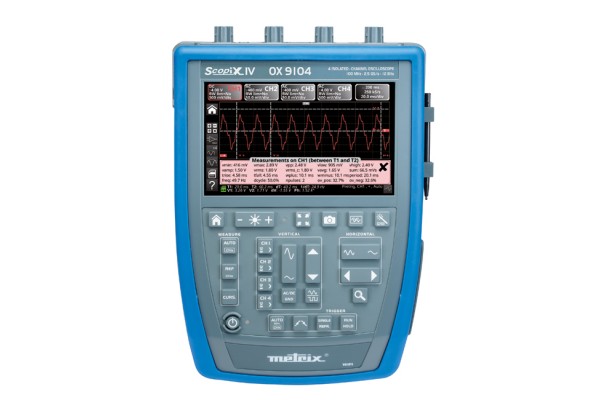

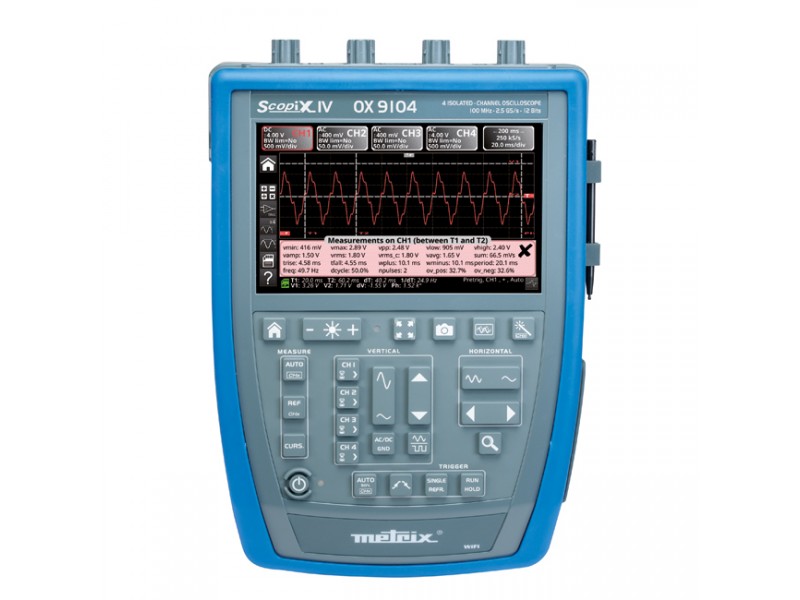

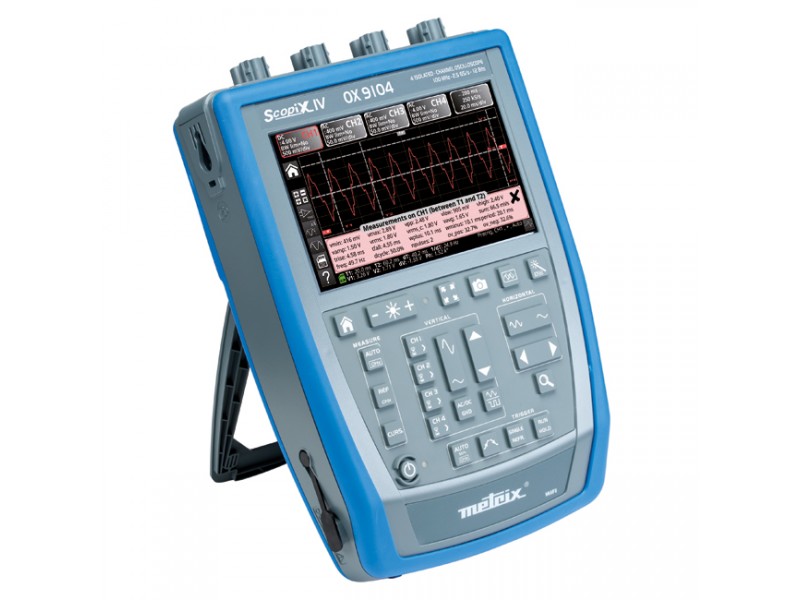

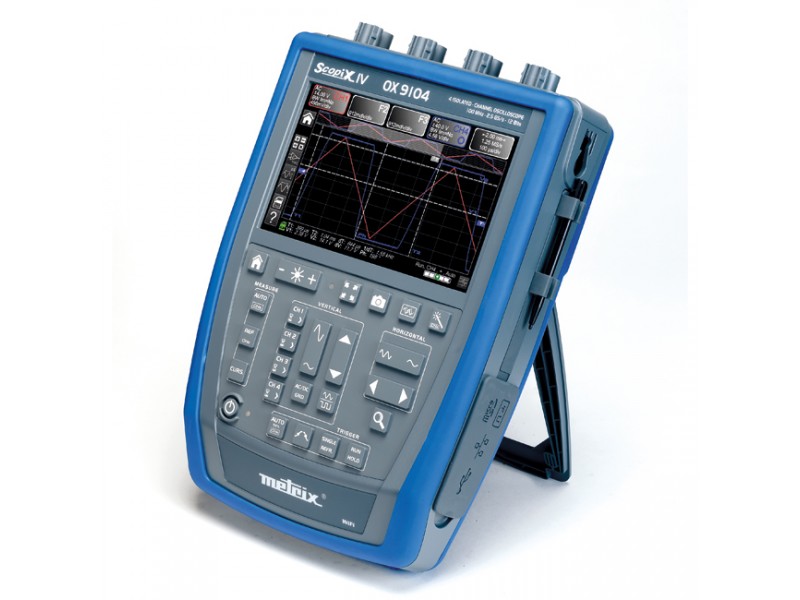

Osciloscópio Portátil AEMC OX 9104

The Model OX 9104 Oscilloscope is a rugged, ergonomic, self-contained, hand-held, four-channel oscilloscope with 100MHz bandwidth, 4 channel DMM 8000 cts, FFT function and recording mode, and power measurement.

Large touch screen 7” color LCD display

Ideal for both laboratory and field use, the Model OX 9104 utilizes the patented system of “plug-and-play” accessories, individual isolation of each of the measurement channels, and a range of remote management capabilities. The Ethernet link and Wi-Fi lets you remotely control the oscilloscope without loading any software to your PC. Android App available to download from Google play store.



TECHNICAL SPECIFICATIONS

Type of display: 7" WVGA color TFT LCD touch screen, 800x480 – LED backlighting (adjustable standby mode)
Different display mode: 2,500 real acquisition points on screen - Vectors with interpolation
Display of curves on screen: 4 curves + 4 references  –  Split Screen & Full Screen modes
Screen commands: Touch screen – ANDROID-type icons and graphical commands – customizable channel colors
Choice of language: 15 complete languages, menus & online help

OSCILLOSCOPE MODE
Vertical deflection
Bandwidth: 60 MHz (OX 9062); 100 MHz (OX 9102, OX 9104); 300 MHz (OX 9304); 15 MHz, 1.5 MHz or 5 kHz bandwidth limiter
Number of channels: 2 isolated channels (OX 9062, OX 9102); 4 isolated channels (OX 9104, OX 9304);
Input impedance: 1 MΩ ± 0.5% , approx. 12 pF
Maximum input voltage: 600 V / CAT III (1,000V per Probix) – from 50 to 400 Hz – Probix safety connectors
Vertical sensitivity: 16 ranges from 2.5 mV to 200 V/div and up to 156 μV/div in vertical zoom mode (12-bit converter) – Accuracy ± 2%
Vertical zoom: "One Click Winzoom" mode (12-bit converter and direct graphical zoom on screen) – x 16 max.
Probe factor (non-Probix): 1 / 10 / 100 / 1,000 or any scaling – definition of measurement unit

Horizontal deflection
Sweep speed: 35 ranges from 1 ns/div to 200 s/div., accuracy ± [50 ppm + 500 ps] – Roll  mode from 100 ms to 200 s/div
Horizontal zoom: "One Click Winzoom" system (direct graphical zoom on screen)  x 1 to x 5  or x 100 – storage 100 kpts/channel

Triggering
Mode: On all the channels - automatic, triggered, one-shot, auto level 50%
Type: Edge, pulse width (16 ns-20 s), delay (48 ns to 20 s), counting (3 to 16,384 events) Continuous adjustment of Trigger position
Coupling: AC, DC GND, HFR, LFR, noise – Level and Hold-Off adjustable from 64 ns to 15 s
Sensitivity: ≤ 1.2 division p-p up to 300 MHz

Digital storage
Maximum sampling rate: 2.5 GS/s in one-shot mode on each channel (100 GS/s max. in ETS mode)
Vertical resolution: 12 bits (vertical resolution 0.025 %)
Memory depth: 100 kpts per channel and file viewer in the manager
User storage, File management: Internal = 1 GB to store the files: trace, text, configuration, math functions, System memory: .pdf print files, .png image files+ high-capacity removable μSD-Card: SD 2 GB, SDHC 4-32 GB and SDXC > 32 GB
GLITCH mode: Duration ≤ 2 ns – 500,000 Min/Max pairs
Display modes: Envelope, vector, accumulation-, averaging (factors 2 to 64) – XY (vector) and Y(f)=FFT

Other functions
AUTOSET: Complete in under 5 s, with recognition of the channels – Frequency > 30 Hz
FFT analyzer & MATH functions: 2,500-point FFT (Lin or Log) with measurement cursors – Functions + , - , x , /  and mathematical function editor
Cursors: 2 or 3 cursors: simultaneous V and T with AUTO measurement: T1, T2, Dt, 1/Dt, dBV, Ph
Automatic measurements: Simultaneously with waveform, 20 automatic measurements per channel and on the 4 channels simultaneously with scroll

MULTIMETER MODE
General specifications: 2 or 4 channels – 8,000 cts min/max/frequency/relative – TRMS – Time/date-stamped graphical recording in logger mode
AC, DC and AC + DC voltages: 600 mV to 600 VRMS, 800 mV to 800 VDC – VDC accuracy +/- (0.5 % + 25 D) – 200 kHz bandwidth
Resistance: 80 Ω to 32 MΩ – accuracy 0.5%R+ 25D – Quick continuity test < 10 ms
Other measurements: Temperature (HX0035 = KTC, HX0036 = Pt100) / Capacitance 5nF to 5mF / Frequency 200 kHz / Diode test 3.3 V
Single and three-phase power: Active, Reactive and Apparent power values plus Power Factor simultaneously with the U & I measurements

HARMONIC ANALYSER MODE
Multi-channel analysis: 2 or 4 (depending on model), 63 orders, fundamental frequency 40 to 450 Hz in auto or manual mode
Simultaneous measurements: Total Vrms, THD and selected order (% fundamental, phase, frequency, Vrms)

LOGGER MODE
Acquisition: Duration: 20,000 s – Interval: 0.2 s – Files: 100,000 measurements

GENERAL SPECIFICATIONS
Configuration memories: Not limited according to device - variable file sizes
Printing: Network printing via Ethernet/Wifi in .png format
PC communication – software link: Ethernet (100 baseT), WiFi-USB (device, 12 Mbs) – "ScopeNet" application software for PC
Software: PC: Ethernet and USB, ScopeNet (remote control, data recovery, cursors and automatic measurements)Android tablet – ScopeAdmin Fleet Administration utility
Mains power supply: Li-Ion rechargeable battery (6,900mAH-40 Wh) – Battery life of up to 8 hrs – Adjustable standby modeAdapter / 2-hour fast charger, universal 98-264 V / 50/60 Hz)
Safety / EMC: Safety as per IEC 61010-2-30, 2010 – 600V CAT III / 1000V CAT II – EMC as per EN61326-1, 2010
Mechanical specifications: 292.5 x 210.6 x 66.2 mm – 2.1 kg with batteries – IP54 protection
