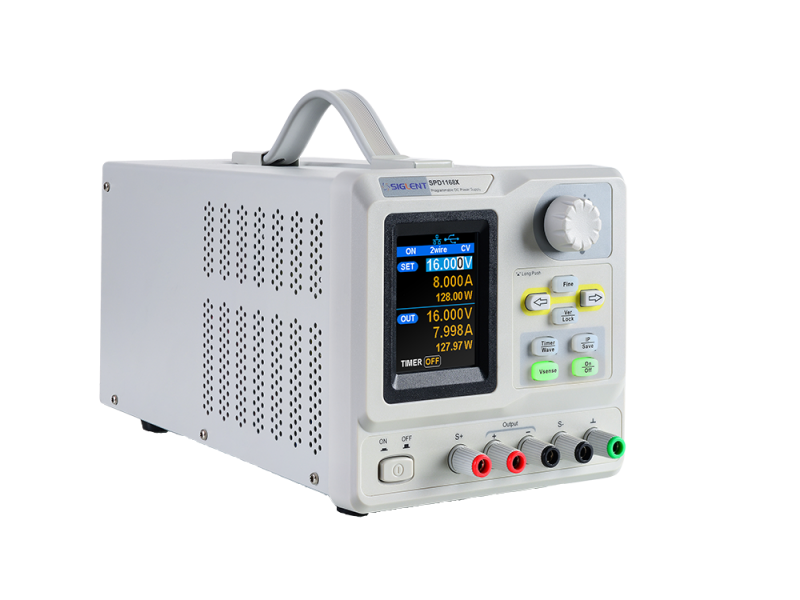

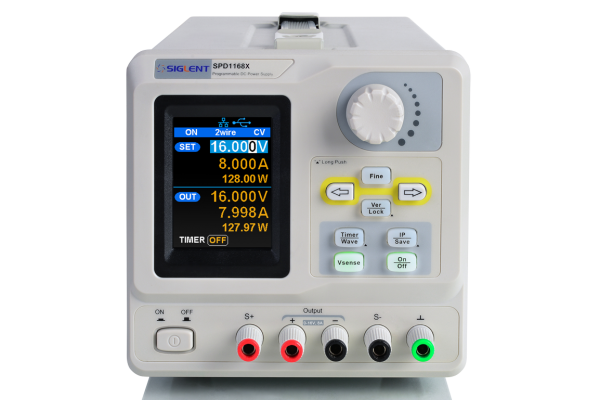

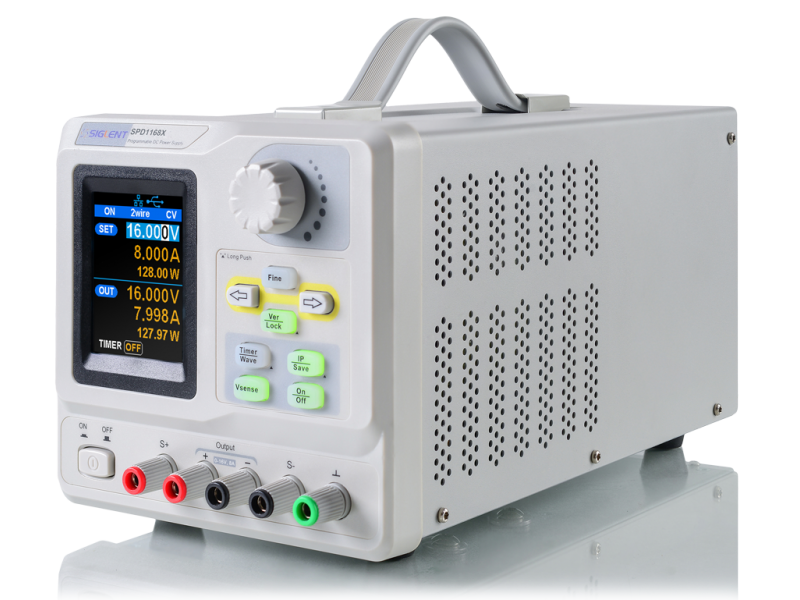

Fonte de Alimentação CC Programável de Bancada Siglent Série SPD1000X
Preço sob consulta
Em estoque
A fonte de alimentação CC linear programável SPD1000X possui um monitor TFT-LCD de 2,8 polegadas, possui capacidade de controle remoto por computador e visor de ondas em tempo real. Esse design de saída única está focado em oferecer alto desempenho e facilidade de uso em um pacote pequeno.
The SPD1168 features a high precision programmable output capable of delivering up to 16 V/8 A,the SPD1305X features a high precision programmable output capable of delivering up to 30 V/5 A and also includes a 4-wire sense function for more accurate voltage sourcing, especially for long leads or high resistance connections. There are additional output short and overload protect functions to assist in production and development applications.
Single channel high-precision programmable voltage output：
SPD1068X: 16 V / 8 A，total power up to 128 W
SPD1305X: 30 V / 5 A，total power up to 150 W
Stable, reliable, Low ripple and noise：≤ 350 uVrms/3
mVpp; < 2 mArms
Fast transient response time: < 50 μs
5 digit Voltage, 4 digit Current Display, Minimum
Resolution: 1 mV/1 mA
2.8 inch true color TFT- LCD 240*320 display
2 types of output modes：Two-wire output mode, 4-wire
compensation output mode，Max. compensation 1 V
Models

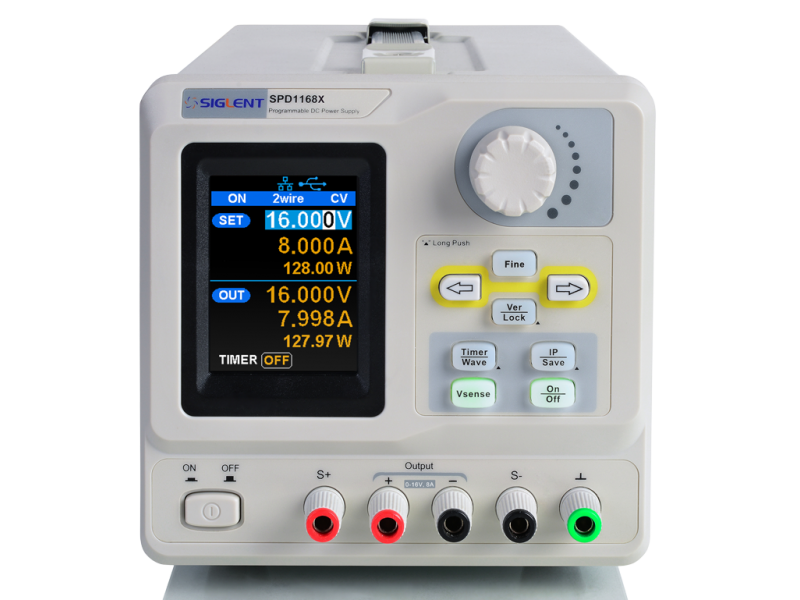

SPD1168X: Channel Output Voltage: 0 to 16 V, Output Current: 0 to 8 A; 2.8 inch true color TFT-LCD 5 digit voltage, 4 digit current; Resolution of 1 mV/1 mA; Setting accuracy of Voltage: ±(0.03% of reading+10 mV), Current: ±(0. 3% of reading+10 mA); Readback accuracy of Voltage: ±(0.03% of reading+10 mV), Current: ±(0. 3% of reading+10 mA)

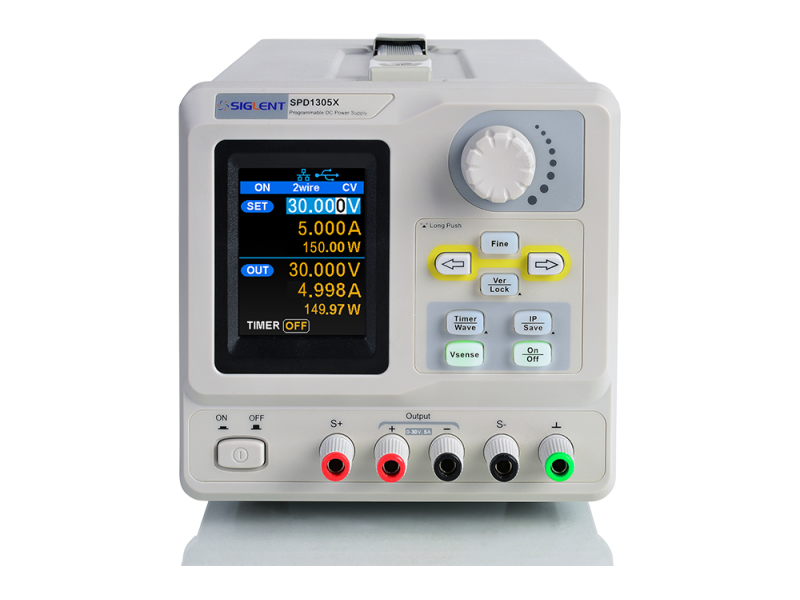

SPD1305X: Channel Output Voltage: 0 to 30 V, Output Current: 0 to 5 A; 2.8 inch true color TFT-LCD 5 digit voltage, 4 digit current; Resolution of 1 mV/1 mA; Setting accuracy of Voltage: ±(0.03% of reading+10 mV), Current: ±(0. 3% of reading+10 mA); Readback accuracy of Voltage: ±(0.03% of reading+10 mV), Current: ±(0. 3% of reading+10 mA)
Key Features
Front panel timing output functions
100/120/220/230 V compatible design to meet the needs of different power grids
Intelligent temperature-controlled fan reduces noise
Clear graphical interface, with waveform display function
Save/recall up-to 5 groups of system settings
Includes PC software: Easypower, supports SCPI, LabView driver
Single channel high-precision programmable voltage output：
SPD1068X: 16 V / 8 A，total power up to 128 W
SPD1305X: 30 V / 5 A，total power up to 150 W
Stable, reliable, Low ripple and noise：≤ 350 uVrms/3
mVpp; < 2 mArms
Fast transient response time: < 50 μs
5 digit Voltage, 4 digit Current Display, Minimum
Resolution: 1 mV/1 mA
2.8 inch true color TFT- LCD 240*320 display
2 types of output modes：Two-wire output mode, 4-wire
compensation output mode，Max. compensation 1 V
Models
SPD1168X: Channel Output Voltage: 0 to 16 V, Output Current: 0 to 8 A; 2.8 inch true color TFT-LCD 5 digit voltage, 4 digit current; Resolution of 1 mV/1 mA; Setting accuracy of Voltage: ±(0.03% of reading+10 mV), Current: ±(0. 3% of reading+10 mA); Readback accuracy of Voltage: ±(0.03% of reading+10 mV), Current: ±(0. 3% of reading+10 mA)
SPD1305X: Channel Output Voltage: 0 to 30 V, Output Current: 0 to 5 A; 2.8 inch true color TFT-LCD 5 digit voltage, 4 digit current; Resolution of 1 mV/1 mA; Setting accuracy of Voltage: ±(0.03% of reading+10 mV), Current: ±(0. 3% of reading+10 mA); Readback accuracy of Voltage: ±(0.03% of reading+10 mV), Current: ±(0. 3% of reading+10 mA)
Key Features
Front panel timing output functions
100/120/220/230 V compatible design to meet the needs of different power grids
Intelligent temperature-controlled fan reduces noise
Clear graphical interface, with waveform display function
Save/recall up-to 5 groups of system settings
Includes PC software: Easypower, supports SCPI, LabView driver
