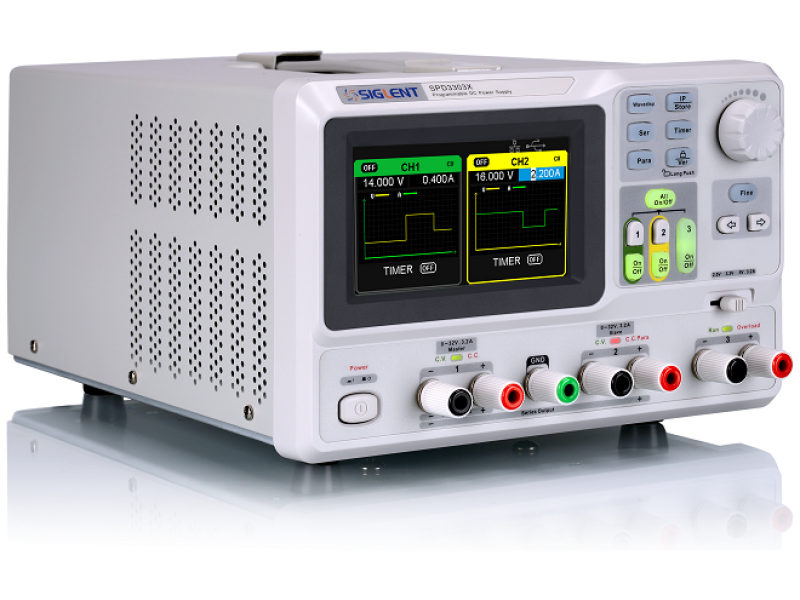

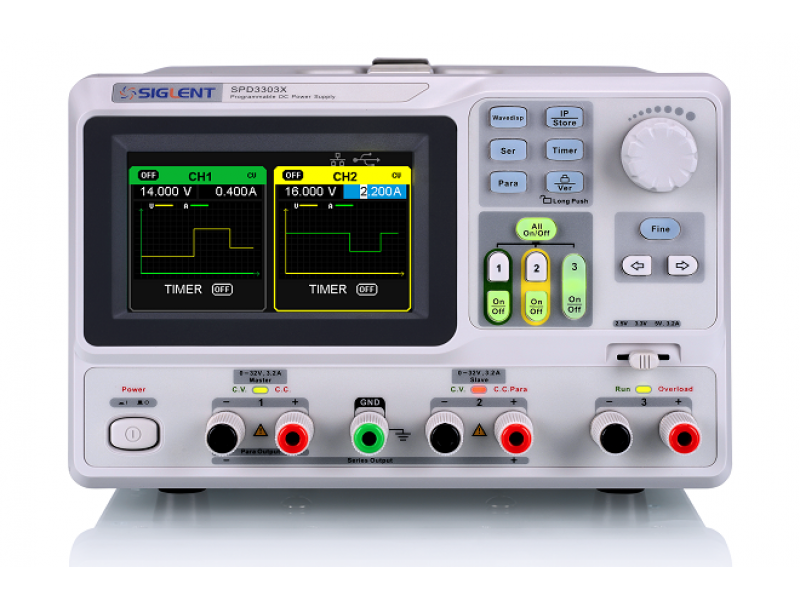

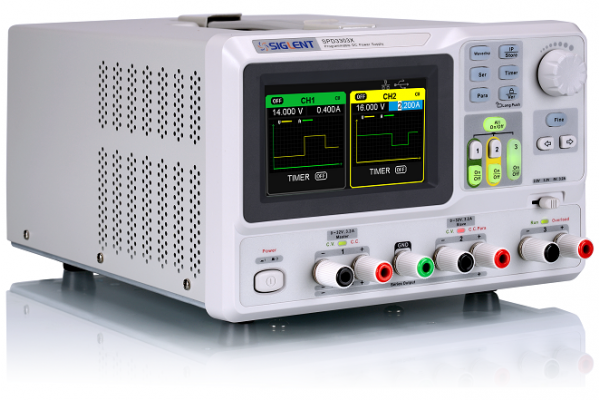

Fonte de Alimentação CC Programável de Bancada Siglent Série SPD3000X/X-E
Preço sob consulta
A fonte de alimentação CC linear programável da série SPD3000X da Siglent possui um monitor TFT-LCD de 4,3 polegadas, suporta programação remota e um monitor de ondas em tempo real. A família ‘3000X possui três saídas isoladas; dois canais ajustáveis e um canal selecionável de 2,5 V, 3,3 V e 5 V. Ele também possui proteção contra curto-circuito e sobrecarga de saída e pode ser usado na produção e desenvolvimento.
3 independently controlled and isolated outputs: Two 32 V/3.2 A, one 2.5 V / 3.3 V / 5 V / 3.2 A × 1, total 220 W
5 digit Voltage/4 digit Current Display, Minimum Resolution: 1 mV/1 mA (SPD3303X)
Timing function provides programmed output steps
4.3 inch true color TFT- LCD 480 x 272 display
3 types of output modes: independent, series (60 V max), and parallel (6.4 A max)
Models
SPD3303X: Channel Output - in CH1: Voltage 0 to 32 V, Current 0 to 3.2 A; in CH2: Voltage 0 to 32 V, Current 0 to 3.2 A; in CH3: Voltage 2.5/3.3/5.0 V, Current 3.2 A; 4.3" color TFT-LCD 5 digit voltage display, 4 digit current display; Resolution of 1 mV, 1 mA; Setting accuracy of Voltage ± (0.5% of reading + 2 digits), Current: ± (0.5% of reading + 2 digits); Readback accuracy of Voltage: ± (0.5% of reading + 2 digits), Current: ± (0.5% of reading + 2 digits)
SPD3303X-E: Channel Output - in CH1: Voltage 0 to 32 V, Current 0 to 3.2 A; in CH2: Voltage 0 to 32 V, Current 0 to 3.2 A; in CH3: Voltage 2.5/3.3/5.0 V, Current 3.2 A; 4.3" color TFT-LCD 4 digit voltage display, 3 digit current display; Resolution of 10 mV, 10 mA; Setting accuracy of Voltage: ± (0.5% of reading + 2 digits), Current ± (0.5% of reading + 2 digits); Readback accuracy of Voltage: ± (0.5% of reading + 2 digits), Current: ± (0.5% of reading + 2 digits)
Key Features

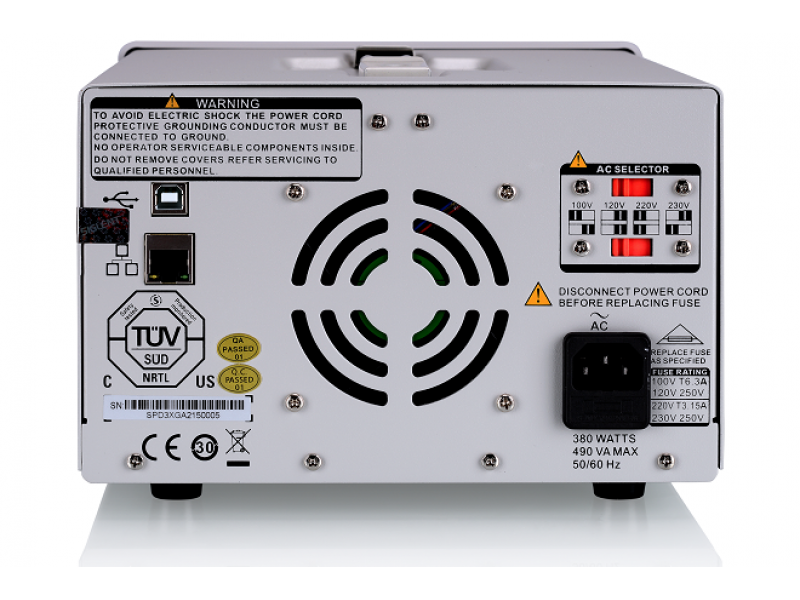

100/120/220/230 V compatible design to meet the needs of different power grids
Intelligent temperature-controlled fan effectively reduces fan noise
Clear graphical interface, with waveform display function
Five internal groups of system parameter save/recall, supports data storage space expansion
Free PC software; Easypower. Also supports remote programming and includes a LabView driver
