Gerador de Sinais RF para Rack Tabor Série Lucid

    Preço sob consulta

    Em estoque


Tabor is proud to introduce its new line of RF analog signal generators. The all-new Lucid Series offers the most advanced features and industry leading performance in the most compact form factor.


The series feature 3, 6 and 12 GHz single channel versions, all sharing the very same industry leading highlighted features, in a compact, small footprint module. Featuring fast switching speed, superior signal integrity and purity, all the necessary modulated signals for analog communication systems, with built in SPI and micro-USB interface, the Lucid Series is designed to meet today’s most demanding specifications, needed from the R&D benches to the production lines.

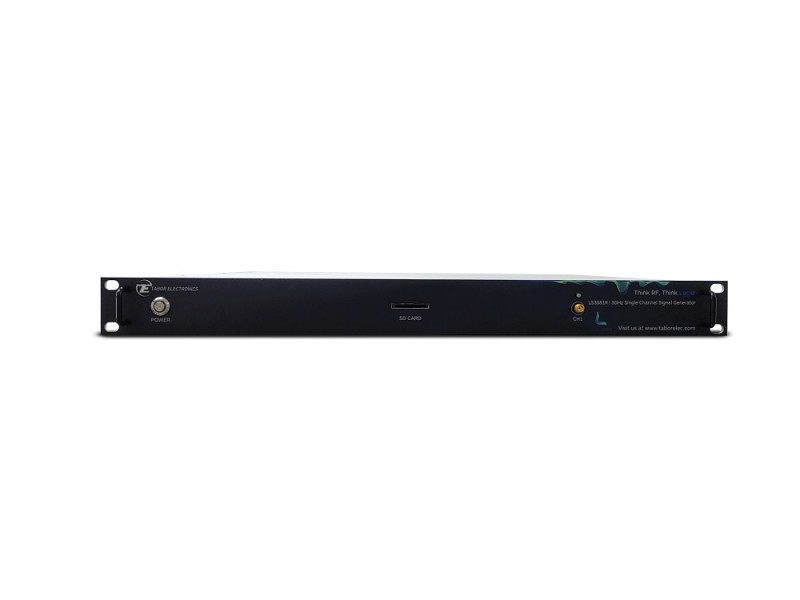

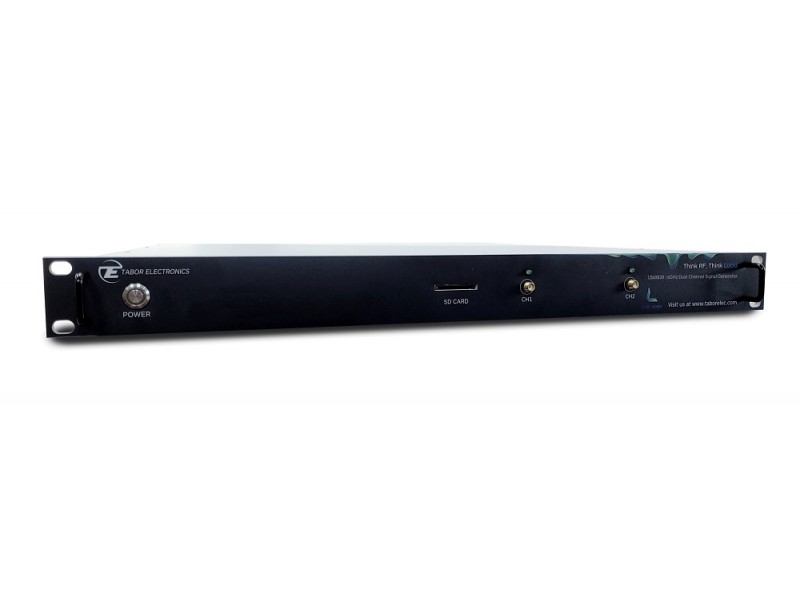

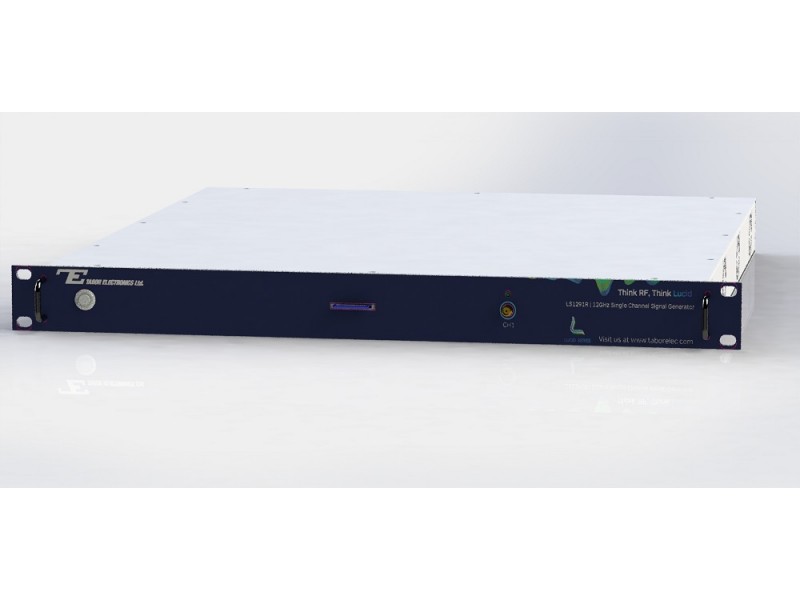

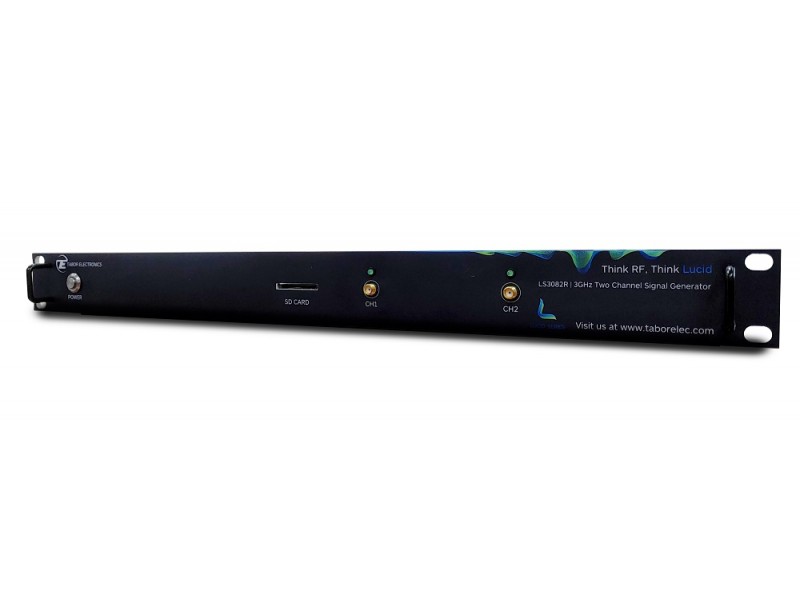

The Rack Mount platform is designed to offer maximum channel density at minimum cost of space. Offering up to 4 phase coherent channels in a 19” 1U box and up to 16 phase coherent channels in a 19” 3U box, the rack mount platform is by far the best in its class for signal density. Featuring fast switching speed, superior signal integrity and purity, removable memory card for maximum security, all the necessary modulated signals for analog communication systems, built in LAN and USB interfaces, this platform meets today’s most demanding specifications, needed for ATE and production lines.


Features

3 GHz, 6 GHz and 12 GHz RF Analog signal Generators

Extremely fast swithching speed of <100us

Up to 16 phase coherent channels in a single rack-mounted box

Remotely programmable via MATLAB, Python, LabView and other software programming environments

USB and LAN interfaces

Exceptionally low phase noise of -145dBc/Hz @100MHz and 10kHz offset

Easy to use benchtop platform with 5'' touch screen and user friendly GUI

Rack Mount designed for maximum channel density in minumum rack space

AM, FM, PM Sweep & Pulse Modulation

Removable SD card for instrument security


Multi-channel, phase coherent, benchtop generator

Many test systems and experimental setups require multiple RF channels, either separate or synchronized. The Lucid series rack mounted platform offers up to 16 separate or phase coherent, RF outputs in a single 19” 3U box, saving up to 16 times the space compared to available rack mounted solutions on the market. You can save both valuable bench/rack space and investment capital without compromising performance.


Signal Integrity and Purity

One of the most important requirement in today’s testing and measurement applications is high signal quality. With a typical SSB phase noise of -145dBc at 100MHz, and -132dBc at 1GHz, at 10 kHz carrier offset, Tabor’s All-New Lucid Series platform delivers one of the best quality signals available on the market today, answering the ever-growing demand for clear and precise signals.


Modulation Schemes

Signal bursts and chirps have become common need in the daily life of any aerospace or defense application. With Tabor’s All-New Lucid Series, any pulse modulation is possible, no matter if its “narrow” or “standard” pulse need. On top of its outstanding pulse modulation performance, the Lucid Series is also equipped with many CW interferers, and modulated signals such as AM, FM, PM and Sweep.


Multiple Ways to Control the Unit and Write your Code

Tabor’s Lucid Series comes with its own dedicated software to control the instrument functions, modes and features via a graphical user interface (GUI) as well as a complete set of drivers, allowing you to write your application in various environments including LabVIEW, Python, CVI, C++, VB and MATLAB. You may also link the supplied dll to other Windows-based API’s or use low-level SCPI commands to program the instrument, regardless of whether your application is written for Windows, Linux or Macintosh operating systems.


TECHNICAL SPECIFICATIONS


FREQUENCY

Range:

LS3081/2/4/16R: 9 kHz to 3GHz

LS6081/2/4/16R: 9 kHz to 6GHz

LS1291/2/4/16R: 9 kHz to 12GHz

Resolution: 0.001 Hz

Phase offset: 0.01 deg

Switching speed:

Standard: 500 µs

With FS Option: 100 µs


FREQUENCY REFERENCE

Temp. Stability: ±25 ppb max.

Aging: ± 3 ppm for 20 years

Warm up time: 30 min


AMPLITUDE

Max output power:

Settable: +20 dBm

Calibrated: +15 dBm (1)

Min output power:

Settable: -100 dBm

Calibrated: -80 dBm

Resolution: 0.01 dB

Power Mute: -95 dBm

Output Return Loss: -10 dBm

Accuracy (dB):

Up to 100MHz: ±0.3 (typ.) (-50dBm to +15dBm); ±0.5 (typ.) (-90dBm to -50dBm)

100MHz to 3GHz: ±0.4 (typ.) (-50dBm to +15dBm); ±0.6 (typ.) (-90dBm to -50dBm)

3GHz to 9GHz: ±0.7 (typ.) (-50dBm to +15dBm); ±0.9 (typ.) (-90dBm to -50dBm)

Above 9GHz: ±1 (typ.) (-50dBm to +15dBm); ±1.5 (typ.) (-90dBm to -50dBm)


PHASE NOISE (dBc/Hz)

Measured @ 10kHz offset

1 GHz: -138 (typ.)

2 GHz: -133 (typ.)

3 GHz: -130 (typ.)

6 GHz: -124 (typ.)

12 GHz: -118 (typ.)


HARMONICS (dBc)

Up to 100 MHz: -30 dBc

100 MHz to 12 GHz: -50 dBc (2)


SUB-HARMONICS (dBc)

6 to 12 GHz: -55 dBm


NON-HARMONICS (dBc)

Up to 12 GHz: -90dBc (typ.) (3,4), -60dBc max.(5)


FREQUENCY MODULATION

Maximum Deviation: 10 MHz

Resolution: 0.1% or 1 Hz (the greater)

Modulation Rate: 1 MHz

Resolution: 1 Hz


AMPLITUDE MODULATION

AM Depth:

Type: Linear

Maximum settable: 90%

Resolution: 0.1% of depth

Accuracy (1 kHz) < ± 4% of setting

Modulation rate: DC to 100 kHz


PHASE MODULATION

Peak Deviation: 360 deg

Modulation Rate: DC to 100 kHz


PULSE MODULATION (PLS OPTION)

On/off ratio: 80 dB

Rise/fall time: (10%-90%): 15ns (typ.)

Resolution: 6.4ns

Minimum Width: 32ns

Repetition frequency: DC to 10 MHz


PATTERN MODULATION (PAT OPTION)

Number of steps: 1 to 2048

Step Repetition: 1 to 65535

On/off time: 32 ns to 20 days


SWEEP

Range: Same as freq. range

Modes: Frequency step, Amplitude step, List

Dwell time: 10 µs to 1000 s

Resolution: 1 µs

Number of points:

List: 2 to 4,096

Step: 2 to 65,535

Step change: Linear

Trigger: Free run, External, Bus, Timer


MODULATION INPUT

Connector Type: BNC

Input Impedance: 50Ω

Max. input voltage: ±1V

Input damage level: ±3.5V


PULSE / TRIGGER INPUT

Connector type: BNC (per channel)

Input Impedance: 50Ω

Input voltage: TTL, CMOS compatible

Threshold: 1.5V

Damage level: -0.42V or 5.42V


EXTERNAL REFERENCE INPUT

Connector type: BNC (per channel)

Input Impedance: 50Ω

Waveform: Sine or Square

Frequency: 10/100MHz

Power: -3 dBm to +10 dBm

Absolute Max. Level: +15 dBm

Locking Range: ±2 ppm


RF OUT

Impedance: 50Ω

Connector type: SMA

Number of outputs:

LS3081/6081/1291R: 1

LS3082/6082/1292R: 2

LS3084/6084/1294R: 4

LS30816/60816/12916R: 16


REFERENCE OUT

Impedance: 50Ω

Connector type: 2x BNC

Frequency: 10 MHz or 100 MHz

Shape: Sine

Power: 3 to 7 dBm


Notes

(1) Above 25kHz;

(2) 750MHz to 900MHz -35dBc (typ.);

(3) -60dBm max. @ 1GHz, 1.5GHz, 2.5GHz and 3GHz;

(4) -75dBm max. @ -15dBm to +15dBm and f>6GHz;

(5) Boundary spurs which may apear @ -100MHz to +100MHz offset from CW


GENERAL SPECIFICATIONS

Voltage: 90VAC to 264VAC

Frequency Range: 47Hz to 63Hz

Power Consumption:

1U box: 100W

3U box: 400W

Interface:

Host: 2 x front panel USB type A, 1 x rear panel USB type A

Device: 1 x rear panel USB type B, 1 x rear panel 1000/100/10 BASE-T LAN

Storage: Removable SD card

Dimensions (W x H x D): 1U box: 450 X 43 x 500 mm; 3U box: 450 X 129 x 500 mm

Weight:

Without Package: 1U box: 6.0 kg; 3U box: 12 kg

Shipping Weight: 1U box: 7.0 kg; 3U box: 13 k

Temperature:

Operating: 0ºC to +40ºC

Storage: -40ºC to +70ºC

Warm up time: 15 minutes

Humidity: 85% RH, non - condensing

Safety: CE Marked, IEC61010-1:2010

EMC: IEC 61326-1:2013

Calibration 2 years

Warranty: 1/3 year warranty plan


MODEL DESCRIPTION

LS3081R: 3GHz 1CH Rack-Mounted Analog Signal Generator

LS3082R: 3GHz 2CH Rack-Mounted Analog Signal Generator

LS3084R: 3GHz 4CH Rack-Mounted Analog Signal Generator

LS30816R: 3GHz 16CH Rack-Mounted Analog Signal Generator

LS6081R: 6GHz 1CH Rack-Mounted Analog Signal Generator

LS6082R: 6GHz 2CH Rack-Mounted Analog Signal Generator

LS6084R: 6GHz 4CH Rack-Mounted Analog Signal Generator

LS60816R: 6GHz 16CH Rack-Mounted Analog Signal Generator

LS1291R: 12GHz 1CH Rack-Mounted Analog Signal Generator

LS1292R: 12GHz 2CH Rack-Mounted Analog Signal Generator

LS1294R: 12GHz 4CH Rack-Mounted Analog Signal Generator

LS12916R: 16GHz 4CH Rack-Mounted Analog Signal Generator


OPTIONS

Option PLS: Pulse Modulation

Option ELP: Extended Low Power option (-150 dBc)

Option EPR: Extended Power Range option (-130 dBc to +27dB)

Option PAT: Pattern Modulation Option

Option FS: Fast Switching

W-RACK: Rack mount kit

Emulator Pack: Includes emulators for Keysight, R&S, Anapico & Holzworth

Note: Options and Accessories must be specified at the time of your purchase.
