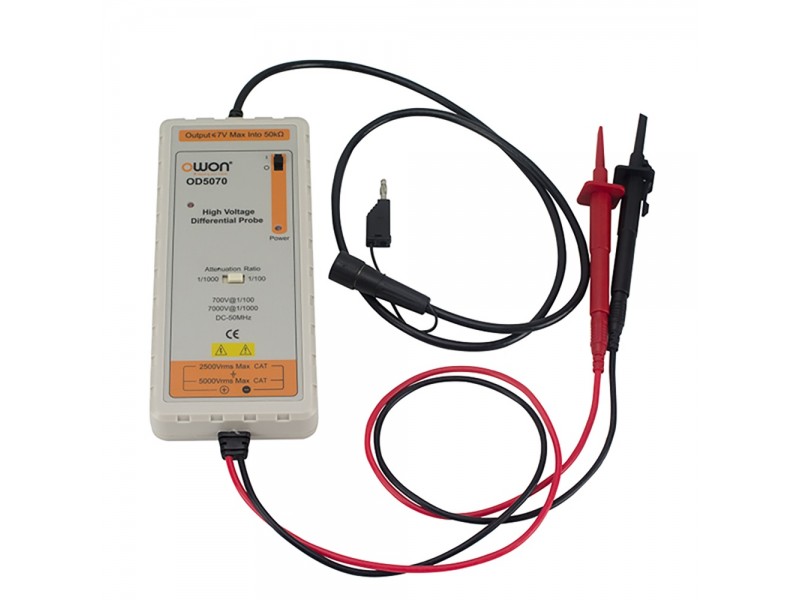

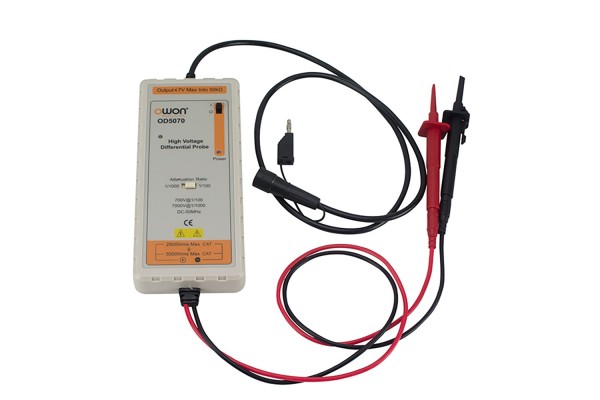

Ponta de Prova Ativa e Diferencial de Alta Tensão Owon OD5070 7kV 50MHz

Owon Active High Voltage Differential Probe, measuring two signals with 180° phase difference - Standard BNC connector, generally applied to many types of oscilloscope on the market. The differential signal, the multichannels which are not common grounded can be measured directly, without worrying about damaging to the under-test device and measuring system. The high resistance isolation between the oscilloscope and the under-test device can reduce the risk of electric shock.

Features

+ Differential measurement

+ CMRR

+ Floating measurement

+ High Resistance Isolation

Specifications

Model: OD5070

Bandwidth: 50MHz

Max. input differential voltage: 7000V(1:1000), 700V(1:100)

Accuracy: ±1%

Input impedance: 10MOhms//2PF

Output voltage: 7V (into 50KQ load)

Offset: <±5mV

CMRR: -80dB 60Hz, -50dB 100Hz

Power requirements: 6V DC/300mA main adapter

Length of BNC lead: 90cm

Length of input leads: 60cm

Weight: 500g

Dimension (LXWxH): 169 x 69 x 26 (mm)
